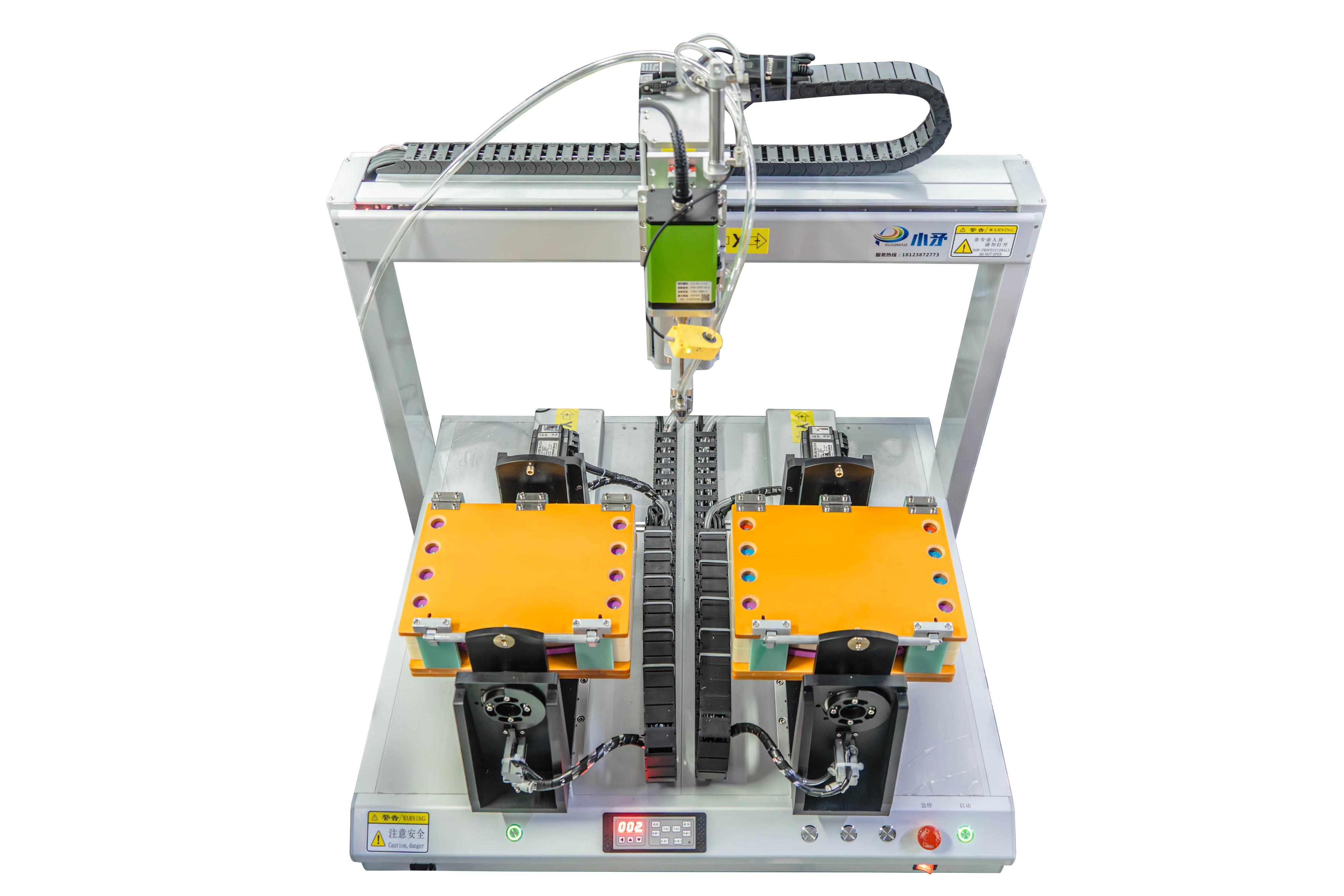

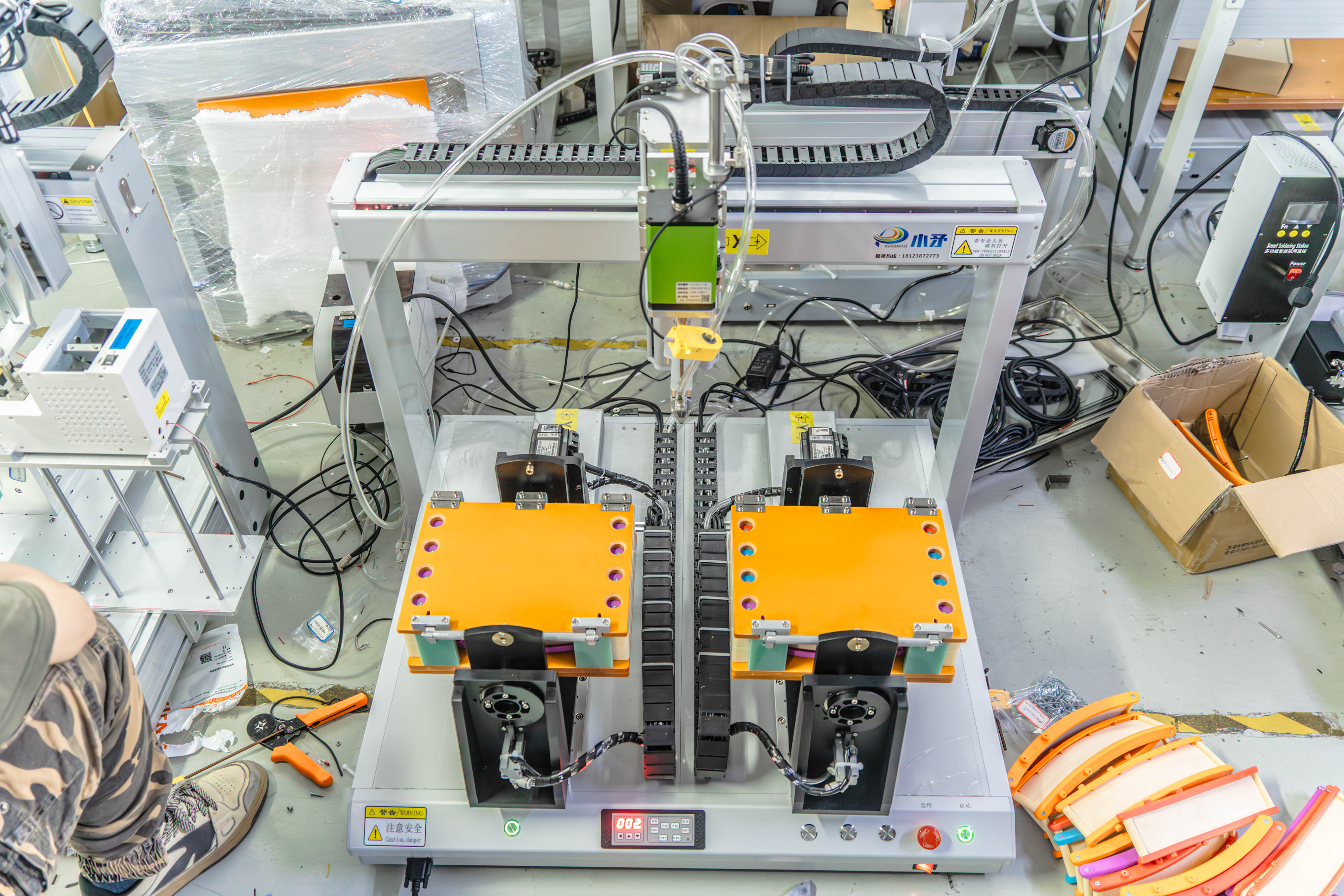

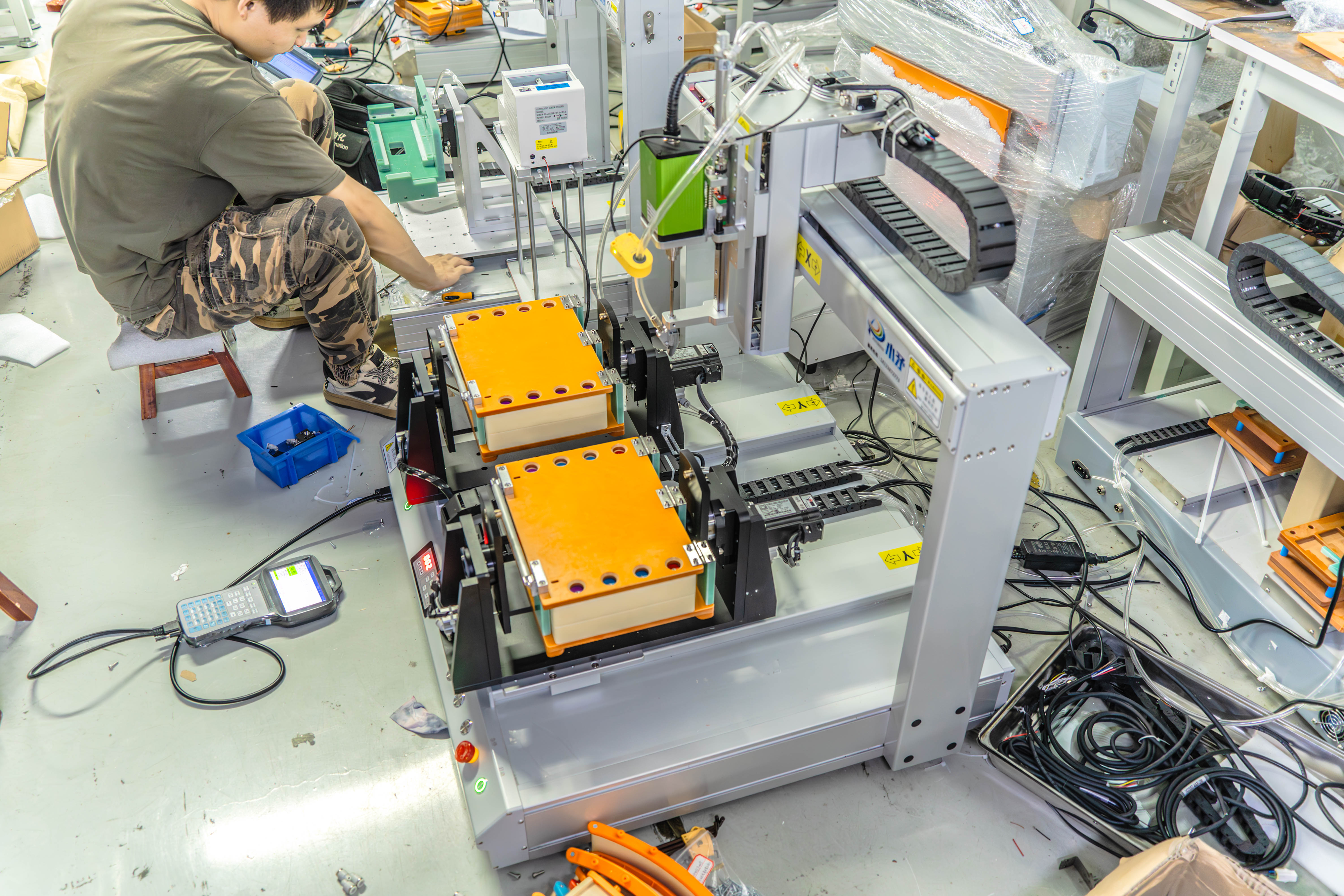

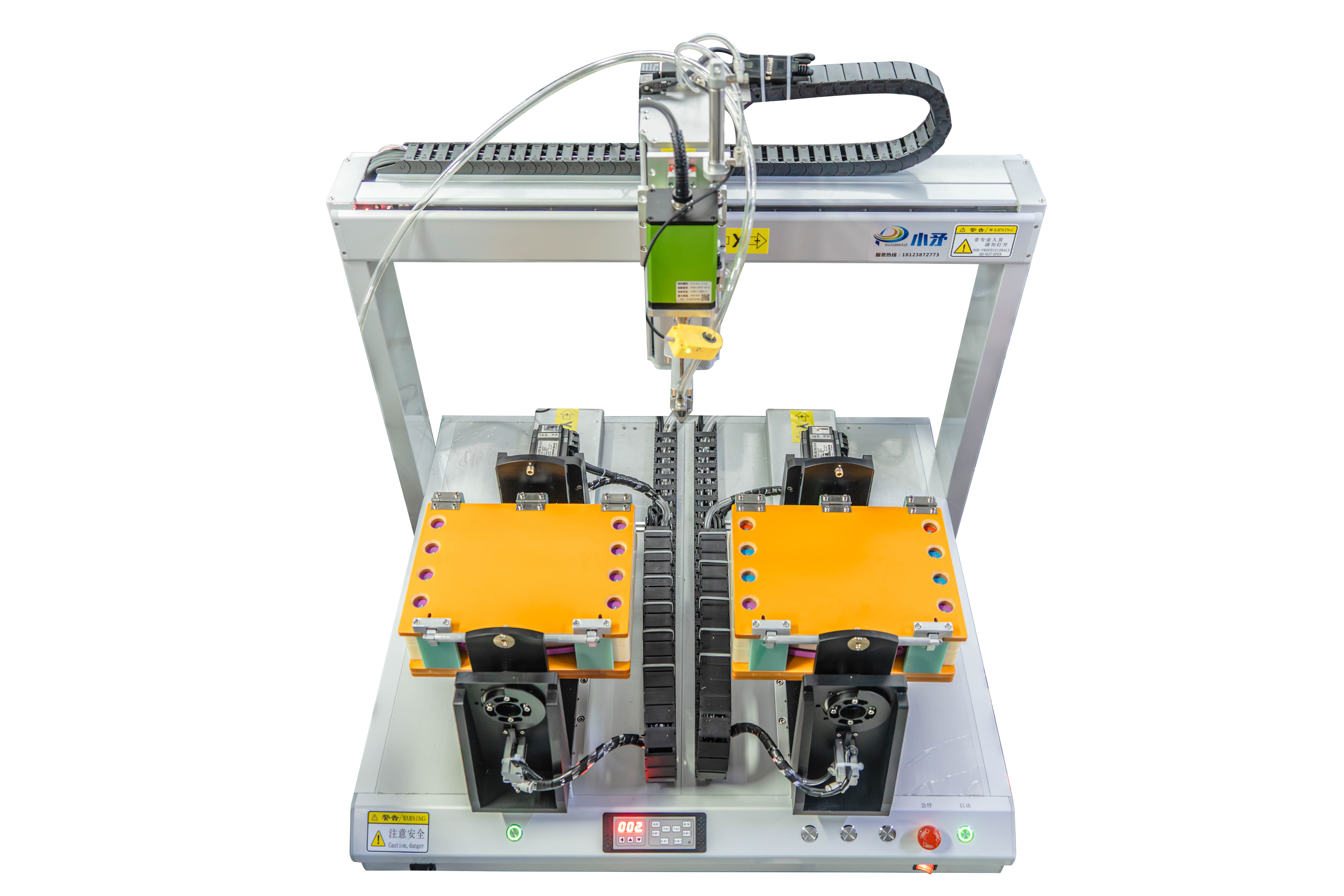

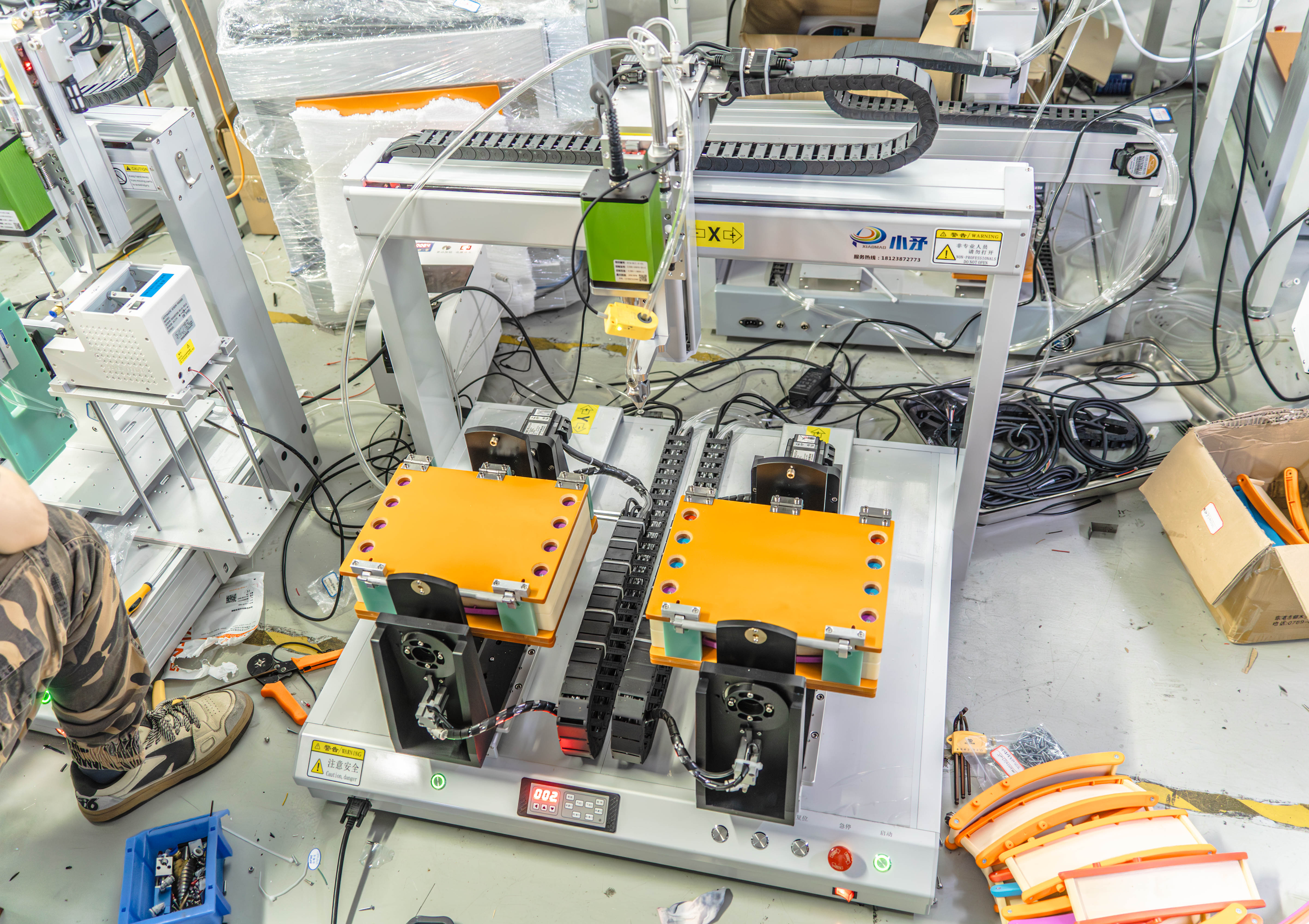

Double-station Y-axis rotary screw locking machine

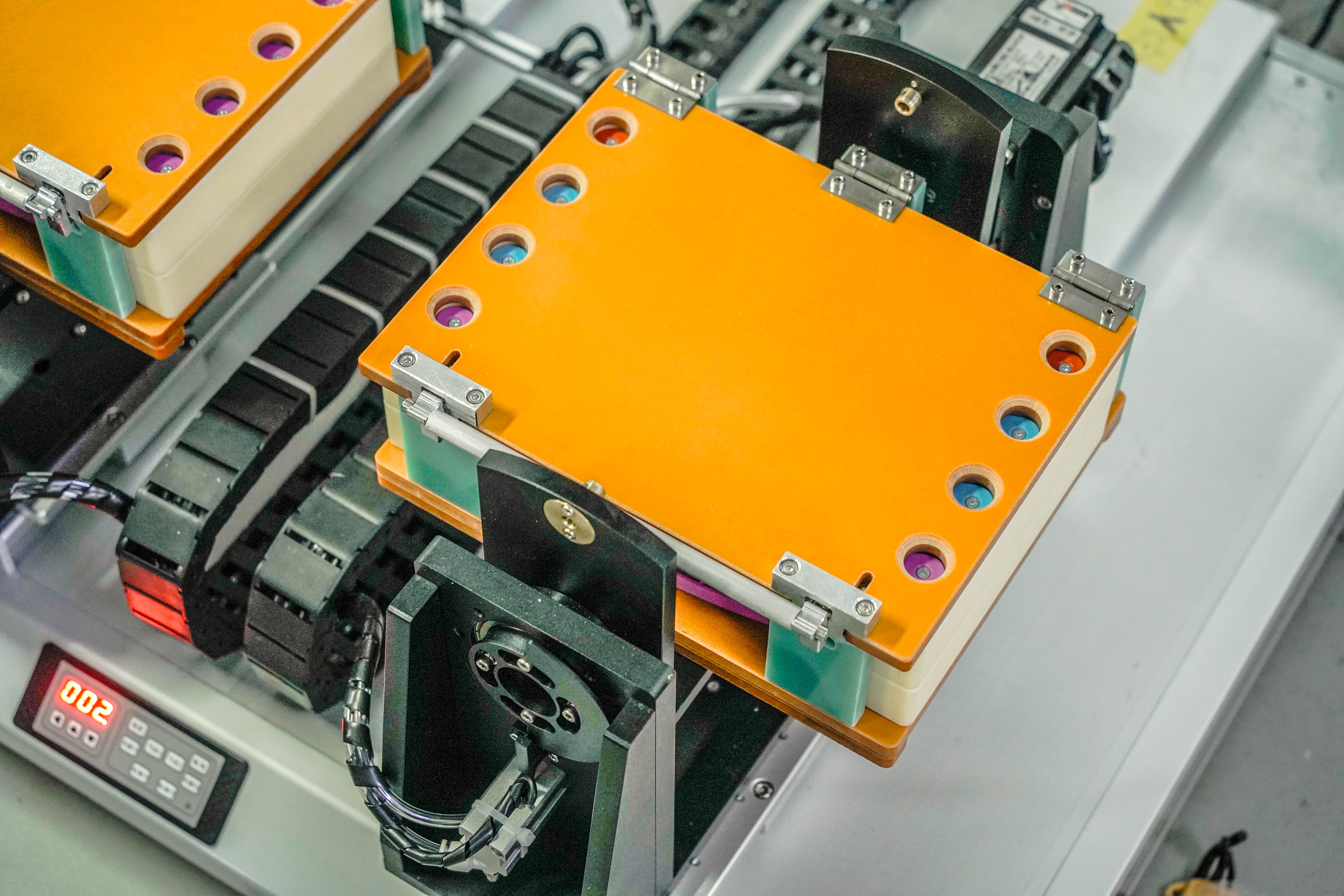

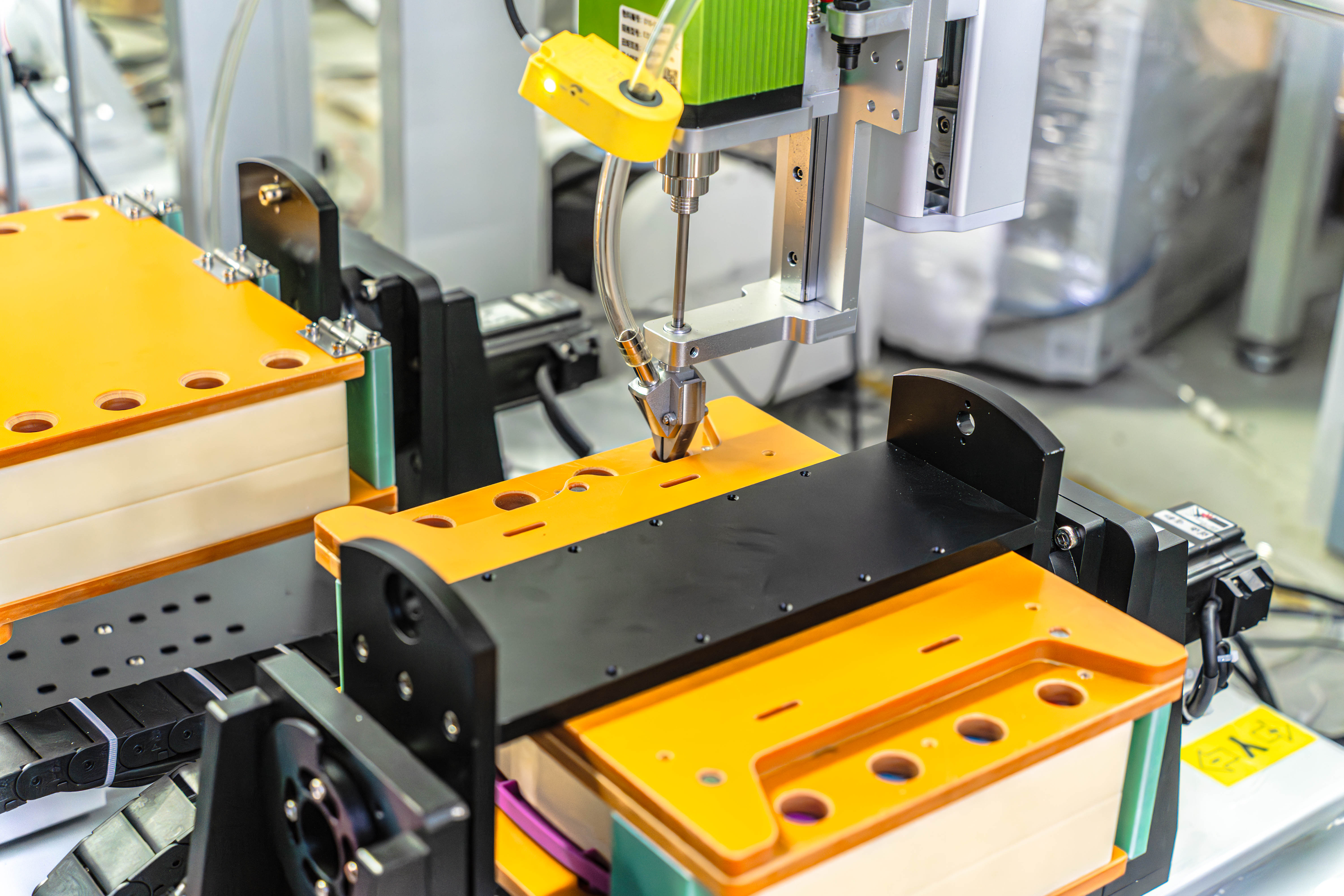

The double-station Y-axis rotary screw locking machine is an efficient automated equipment. It adopts a double-station design, which can work alternately and greatly improve production efficiency; the Y-axis rotation function enables the equipment to flexibly adjust the angle, accurately locate the screw hole position, and ensure the locking quality. Its process selling point is outstanding, with a high degree of automation, reducing manual operation and labor costs; high locking accuracy, effectively avoiding problems such as screw slipping and floating lock, and improving product yield; and easy operation and low maintenance cost.
The equipment is suitable for a wide range of industries, such as the 3C electronics industry, which can be used for screw locking of products such as mobile phones and tablets; in the field of home appliance manufacturing, such as refrigerators, washing machines and other home appliance parts assembly; and the automotive parts industry, which can meet the screw tightening needs of automotive interiors, shells and other parts, and provide strong support for enterprises to improve production efficiency and product quality.
1.Provide automated production solutions
2.24-hour global one-to-one efficient service.
3.Strong manufacturing, professional customization, quality assurance.
4.Have ISO, TUV and other international quality certifications.
5.Fast delivery, professional transportation.
6.On-site installation, simple and efficient.
Service:
Design and customize models, various styles, strong structure, support teaching, convenient transportation
Origin:
Shenzhen, Guangdong, China
Brand name:
Xiaomao Automation
More Choices
Model | Air Blowing Screw Locking Machine | |
Working range X/Y/Z (mm) | 500*300*300*100, Customizable stroke | |
Programming method | Teaching programming or graphic import | |
Electric screwdriver | Japanese HIOS/intelligent servo electric screwdriver+touch screen | |
Time to lock a screw (seconds) | 0.6-1.5 | |
Maximum load（kilogram） | 10 | |
Repeat accuracy（mm/Axis） | ±0.02 | |
Feeding method | Screw feeder | |
Motor system | Z-axis | servo/closed loop motor |
X/Y-axis | Japanese micro-stepping precision motor | |
Weight (kg) | 75 | |
Sensor | Japanese Omron | |
Operating system | LCD panel/handheld programmer | |
Transmission method | Z-axis | Taiwan Hiwin screw rod |
X/Y-axis | Italy Elate synchronous belt | |
Main selling point | easy to operate | |
Program storage capacity | 999 parameter files (65,535 points per file) | |
Motion mode | 3 axis | |
Working range X/Y/Z (mm) | Model can be customized | |
Maximum speed (mm/s) | 800 | |
Marketing type | Ordinary product | |
Showroom location | Germany | |
Health condition | New | |
Warranty | 1 year | |
Core component warranty | 1 year | |
Mechanical test report | Provided | |
Video shipment inspection | Provided | |
Origin | Guangdong, China | |
Core components | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump | |
Applicable screws: | Screws below M8/25cm long/slotted screws and cross screws with a total length greater than 1.3 times the diameter of the screw cap | |
Applicable products
| Mobile phones, computers, smart wearable devices, communication base station modules, automotive instrument sensors, LED lamps, home appliance control panels, medical device housings, security monitoring hosts, new energy battery modules and other electronic, electromechanical and light industrial products that require precision screw locking | |
Applicable industries | home appliances, hardware, communication equipment, automotive electronics, hotels, clothing stores, building materials stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction projects, energy and mining, food and beverage stores, advertising companies, etc | |
