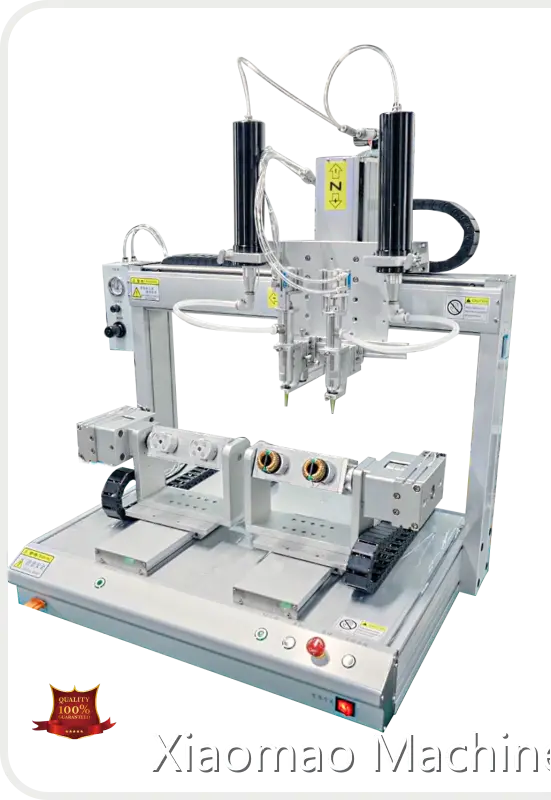

Automated Glue Dispenser by Xiaomao Machine-1

Product details of the automated glue dispenser

Quick Detail

automated glue dispenser is manufactured based on good materials and advanced production technology. It is stable in performance, excellent in quality, high in durability, and good in safety. Thanks to the advanced production equipment, Xiaomao Machine automated glue dispenser is produced efficiently. Its service life is highly guaranteed by the strict test procedure. automated glue dispenser is easy in operation, excellent in performance, and reliable in quality. It can meet the production and processing needs of various types of footwear, including leather shoes, sneakers, boots, sandals, canvas shoes, and others. The product shows a promising application prospect due to its practicality.

Product Description

The automated glue dispenser produced by Xiaomao Machine is better than the previous generation. The specific performance is as follows.

Model		Automatic dispensing machine
Working range X/Y/Z (mm)		300*300*100/500*300*300*100 Customizable stroke
Programming method		Teaching programming or graphic import
Moving graphic trajectory		Point, straight line, arc, full circle, curve, polyline, spiral, ellipse
Dispensing needle		Plastic steel needle, TT needle
Dispensing cylinder		30CC/50CC/100CC/200CC/300CC/500CC
Minimum discharge volume (mm)		0.01
Dispensing frequency (times/second)		5
Load (kg)	X/Y axis	10
	Z axis	5
Weight (kg)		48
Motion system		Nihono stepper motor, driver
Operating system		LCD panel/handheld programmer
Repeat positioning accuracy (mm)	Screw drive	±0.01-0.02
	Synchronous belt	±0.02-0.04
Machine size (MM)		540*580*650
Program storage capacity		999 parameter files (65,535 points per file)
Transmission method		Upper silver rail (slider)
Maximum speed (mm/s)		300
Marketing type		Ordinary product
Showroom location		Germany
Health condition		New
Warranty		1 year
Core component warranty		1 year
Mechanical test report		Provided
Video shipment inspection		Provided
Origin		Guangdong, China
Core components		PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
Applicable glue		UV glue, AB glue, black glue, white glue, yellow glue, EMI conductive glue, anaerobic glue, epoxy resin, instant glue, silver glue, red glue, solder paste, heat dissipation paste, solder mask, transparent paint, lubricating oil, flux, screw fixing agent, etc.
Applicable products		Sensors, relays, power adapters, electronic toys, buzzers, electronic components, household appliances, toys, stationery, electric vehicle controllers, computer digital products, handicrafts, mobile phone boards, coil products, key products, battery boxes, speaker outer ring dispensing and bonding, etc
Applicable industries		hotels, clothing stores, building materials stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction projects, energy and mining, food and beverage stores, advertising companies, etc
