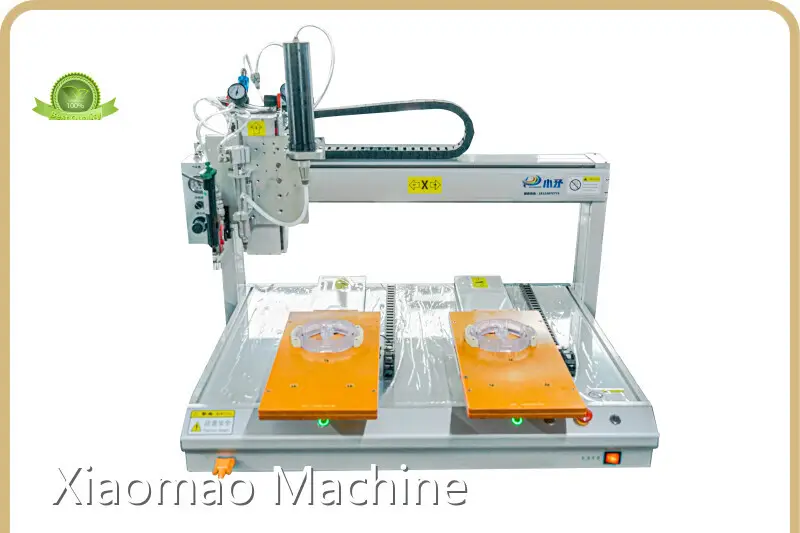

Automated Glue Dispenser by Xiaomao Machine-3
Product details of the automated glue dispenser
Quick Detail
The production of Xiaomao Machine automated glue dispenser is in compliance with the industry defined norms and guidelines. Many customers have remarked that the product is absolutely perfect in its quality, performance, usability, etc. With the widespread reputation, the product will be applied more in the future.
Product Description
In order to know automated glue dispenser better, Xiaomao Machine will show you the specific details in the following section.
Model | Automatic dispensing machine | |
Working range X/Y/Z (mm) | 300*300*100/500*300*300*100 Customizable stroke | |
Programming method | Teaching programming or graphic import | |
Moving graphic trajectory | Point, straight line, arc, full circle, curve, polyline, spiral, ellipse | |
Dispensing needle | Plastic steel needle, TT needle | |
Dispensing cylinder | 30CC/50CC/100CC/200CC/300CC/500CC | |
Minimum discharge volume (mm) | 0.01 | |
Dispensing frequency (times/second) | 5 | |
Load (kg)
| X/Y axis | 10 |
Z axis | 5 | |
Weight (kg) | 48 | |
Motion system | Nihono stepper motor, driver | |
Operating system | LCD panel/handheld programmer | |
Repeat positioning accuracy (mm) | Screw drive | ±0.01-0.02 |
Synchronous belt | ±0.02-0.04 | |
Machine size (MM) | 540*580*650 | |
Program storage capacity | 999 parameter files (65,535 points per file) | |
Transmission method | Upper silver rail (slider) | |
Maximum speed (mm/s) | 300 | |
Marketing type | Ordinary product | |
Showroom location | Germany | |
Health condition | New | |
Warranty | 1 year | |
Core component warranty | 1 year | |
Mechanical test report | Provided | |
Video shipment inspection | Provided | |
Origin | Guangdong, China | |
Core components | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump | |
Applicable glue | UV glue, AB glue, black glue, white glue, yellow glue, EMI conductive glue, anaerobic glue, epoxy resin, instant glue, silver glue, red glue, solder paste, heat dissipation paste, solder mask, transparent paint, lubricating oil, flux, screw fixing agent, etc. | |
Applicable products
| Sensors, relays, power adapters, electronic toys, buzzers, electronic components, household appliances, toys, stationery, electric vehicle controllers, computer digital products, handicrafts, mobile phone boards, coil products, key products, battery boxes, speaker outer ring dispensing and bonding, etc | |
Applicable industries | hotels, clothing stores, building materials stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction projects, energy and mining, food and beverage stores, advertising companies, etc | |
FAQ
Company Introduction
Shenzhen Xiaomao Automation Technology Co.Ltd has preceded over other companies with its delicate automated glue dispenser. Our factory is located in a place where has industrial clusters. Being close to the supply chains of these clusters is beneficial to us. For example, our production costs have greatly reduced due to less transportation expenditure. The goal of Shenzhen Xiaomao Automation Technology Co.Ltd would be the leader among the international brands. Inquire now!
Our products are of reliable quality, with great cost performance and you can purchase them with confidence. If you are in need, please contact us for business discussion.
