Automated Glue Dispenser Wholesale - Xiaomao Machine-4

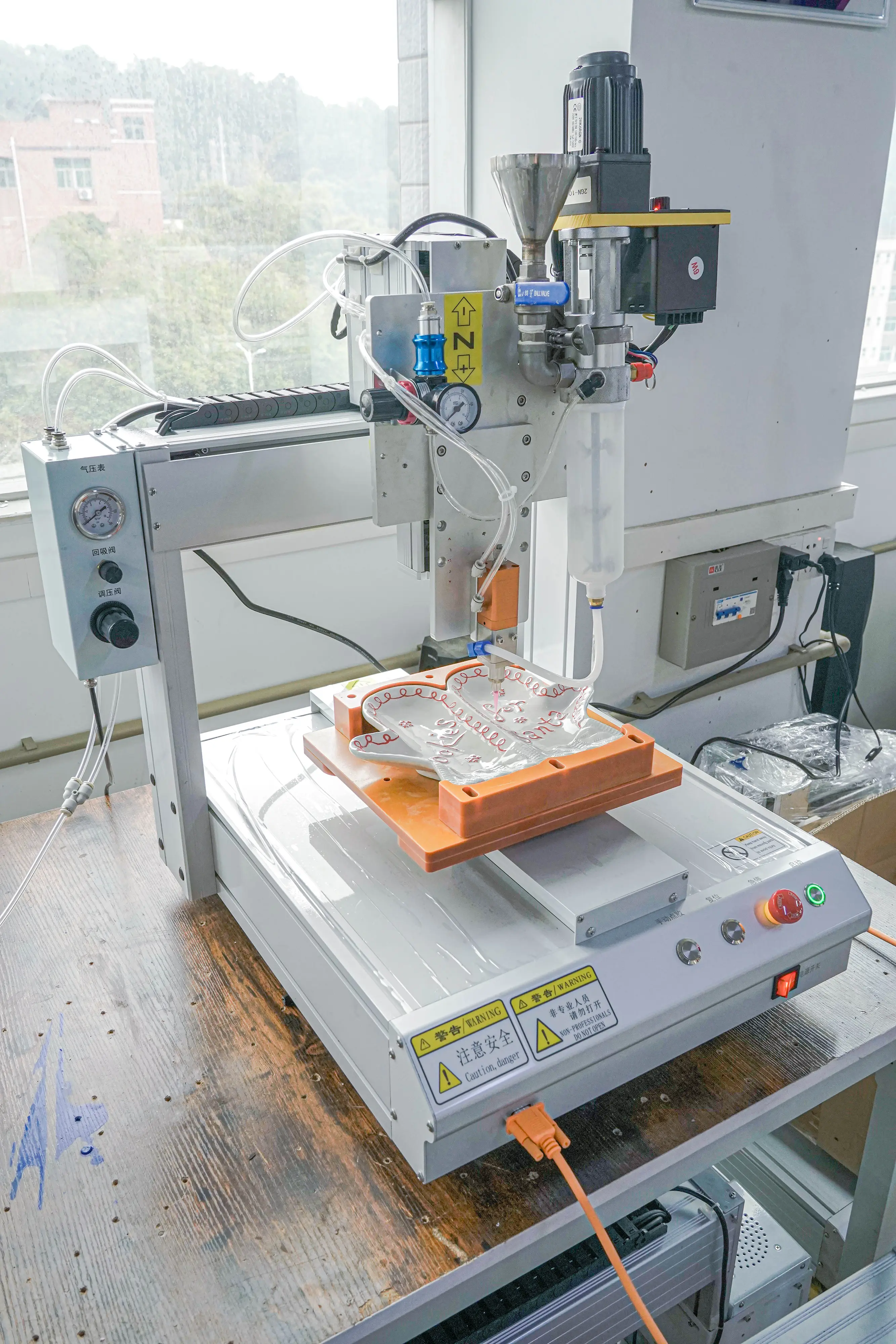

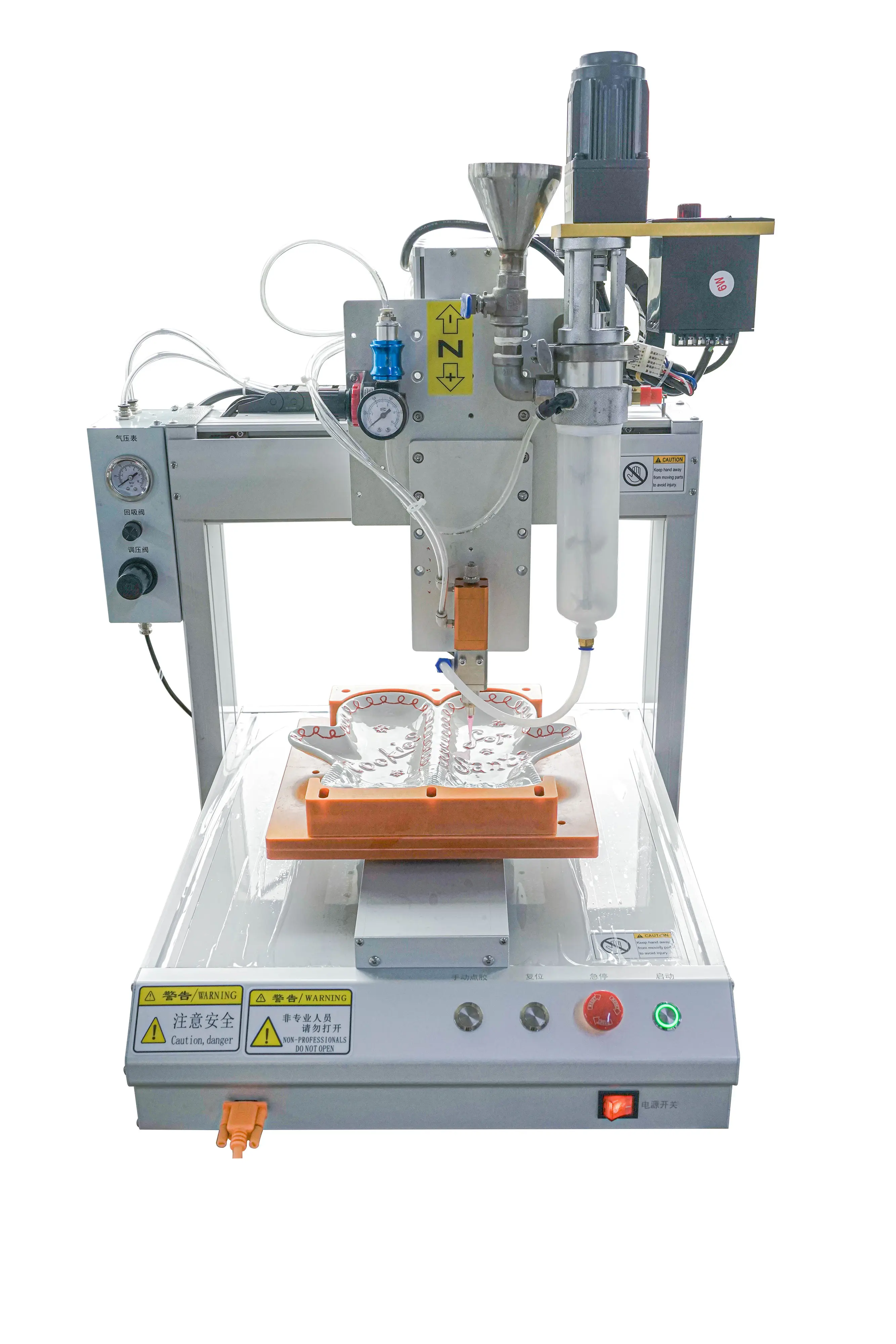

Model | Automatic dispensing machine | |
Working range X/Y/Z (mm) | 300*300*100/500*300*300*100 Customizable stroke | |
Programming method | Teaching programming or graphic import | |
Moving graphic trajectory | Point, straight line, arc, full circle, curve, polyline, spiral, ellipse | |
Dispensing needle | Plastic steel needle, TT needle | |
Dispensing cylinder | 30CC/50CC/100CC/200CC/300CC/500CC | |
Minimum discharge volume (mm) | 0.01 | |
Dispensing frequency (times/second) | 5 | |
Load (kg)
| X/Y axis | 10 |
Z axis | 5 | |
Weight (kg) | 48 | |
Motion system | Nihono stepper motor, driver | |
Operating system | LCD panel/handheld programmer | |
Repeat positioning accuracy (mm) | Screw drive | ±0.01-0.02 |
Synchronous belt | ±0.02-0.04 | |
Machine size (MM) | 540*580*650 | |
Program storage capacity | 999 parameter files (65,535 points per file) | |
Transmission method | Upper silver rail (slider) | |
Maximum speed (mm/s) | 300 | |
Marketing type | Ordinary product | |
Showroom location | Germany | |
Health condition | New | |
Warranty | 1 year | |
Core component warranty | 1 year | |
Mechanical test report | Provided | |
Video shipment inspection | Provided | |
Origin | Guangdong, China | |
Core components | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump | |
Applicable glue | UV glue, AB glue, black glue, white glue, yellow glue, EMI conductive glue, anaerobic glue, epoxy resin, instant glue, silver glue, red glue, solder paste, heat dissipation paste, solder mask, transparent paint, lubricating oil, flux, screw fixing agent, etc. | |
Applicable products
| Sensors, relays, power adapters, electronic toys, buzzers, electronic components, household appliances, toys, stationery, electric vehicle controllers, computer digital products, handicrafts, mobile phone boards, coil products, key products, battery boxes, speaker outer ring dispensing and bonding, etc | |
Applicable industries | hotels, clothing stores, building materials stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction projects, energy and mining, food and beverage stores, advertising companies, etc | |
FAQ
Company Advantages
· Xiaomao Machine automated glue dispenser is made from the best quality raw materials.
· The product is completed to the highest of standards for reliability and performance within the industry.
· Perfect after-sales service is provided by Shenzhen Xiaomao Automation Technology Co.Ltd to maximize customer satisfaction.
Company Features
· Shenzhen Xiaomao Automation Technology Co.Ltd is an excellent automated glue dispenser manufacturer with an international perspective.
· automated glue dispenser has been produced by high-end imported machine.
· We will constantly improve and produce the best automated glue dispenser. Inquiry!
Application of the Product
Multiple in function and wide in application, automated glue dispenser can be used in many industries and fields.
Xiaomao Machine always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.
