Product details of the automated glue dispensing systems
Product Introduction

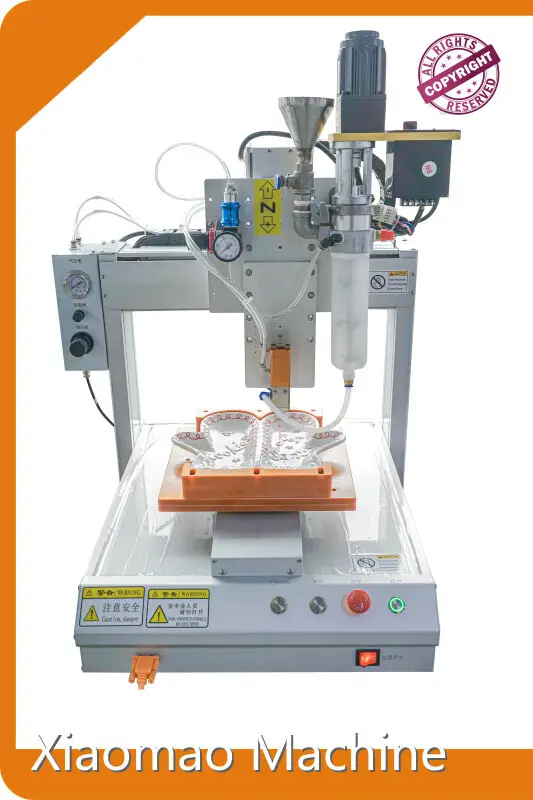

Xiaomao Machine automated glue dispensing systems is specifically designed to meet the needs of customers, featuring innovation and functionality. The product is valued for their features like durability, long-lasting functionality, and long service life. Xiaomao Machine possesses whole distributing net and supplying resource.
Model | Automatic dispensing machine | |
Working range X/Y/Z (mm) | 300*300*100/500*300*300*100 Customizable stroke | |
Programming method | Teaching programming or graphic import | |
Moving graphic trajectory | Point, straight line, arc, full circle, curve, polyline, spiral, ellipse | |
Dispensing needle | Plastic steel needle, TT needle | |
Dispensing cylinder | 30CC/50CC/100CC/200CC/300CC/500CC | |
Minimum discharge volume (mm) | 0.01 | |
Dispensing frequency (times/second) | 5 | |
Load (kg)
| X/Y axis | 10 |
Z axis | 5 | |
Weight (kg) | 48 | |
Motion system | Nihono stepper motor, driver | |
Operating system | LCD panel/handheld programmer | |
Repeat positioning accuracy (mm) | Screw drive | ±0.01-0.02 |
Synchronous belt | ±0.02-0.04 | |
Machine size (MM) | 540*580*650 | |
Program storage capacity | 999 parameter files (65,535 points per file) | |
Transmission method | Upper silver rail (slider) | |
Maximum speed (mm/s) | 300 | |
Marketing type | Ordinary product | |
Showroom location | Germany | |
Health condition | New | |
Warranty | 1 year | |
Core component warranty | 1 year | |
Mechanical test report | Provided | |
Video shipment inspection | Provided | |
Origin | Guangdong, China | |
Core components | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump | |
Applicable glue | UV glue, AB glue, black glue, white glue, yellow glue, EMI conductive glue, anaerobic glue, epoxy resin, instant glue, silver glue, red glue, solder paste, heat dissipation paste, solder mask, transparent paint, lubricating oil, flux, screw fixing agent, etc. | |
Applicable products
| Sensors, relays, power adapters, electronic toys, buzzers, electronic components, household appliances, toys, stationery, electric vehicle controllers, computer digital products, handicrafts, mobile phone boards, coil products, key products, battery boxes, speaker outer ring dispensing and bonding, etc | |
Applicable industries | hotels, clothing stores, building materials stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction projects, energy and mining, food and beverage stores, advertising companies, etc | |
