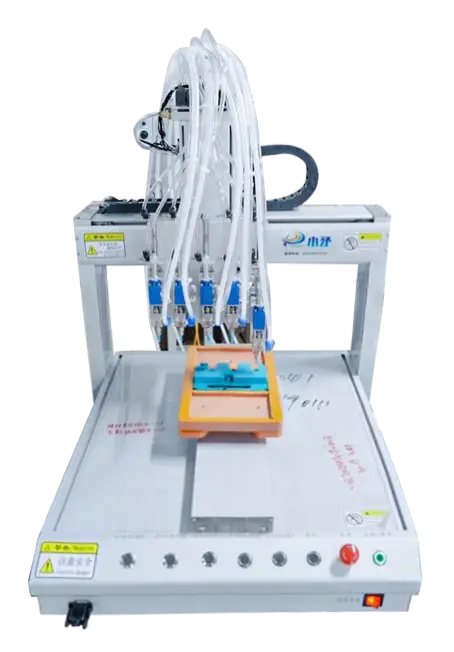

Automatic Glue Dispenser by Xiaomao Machine-2

Company Advantages

· Professionalism would be automatic glue dispenser's advantage.

· The QC team has been always paying close attention to the quality of this product.

· The growth prospect of the product is fueled by an increased demand from customers.

Model		Automatic dispensing machine
Working range X/Y/Z (mm)		300*300*100/500*300*300*100 Customizable stroke
Programming method		Teaching programming or graphic import
Moving graphic trajectory		Point, straight line, arc, full circle, curve, polyline, spiral, ellipse
Dispensing needle		Plastic steel needle, TT needle
Dispensing cylinder		30CC/50CC/100CC/200CC/300CC/500CC
Minimum discharge volume (mm)		0.01
Dispensing frequency (times/second)		5
Load (kg)	X/Y axis	10
	Z axis	5
Weight (kg)		48
Motion system		Nihono stepper motor, driver
Operating system		LCD panel/handheld programmer
Repeat positioning accuracy (mm)	Screw drive	±0.01-0.02
	Synchronous belt	±0.02-0.04
Machine size (MM)		540*580*650
Program storage capacity		999 parameter files (65,535 points per file)
Transmission method		Upper silver rail (slider)
Maximum speed (mm/s)		300
Marketing type		Ordinary product
Showroom location		Germany
Health condition		New
Warranty		1 year
Core component warranty		1 year
Mechanical test report		Provided
Video shipment inspection		Provided
Origin		Guangdong, China
Core components		PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
Applicable glue		UV glue, AB glue, black glue, white glue, yellow glue, EMI conductive glue, anaerobic glue, epoxy resin, instant glue, silver glue, red glue, solder paste, heat dissipation paste, solder mask, transparent paint, lubricating oil, flux, screw fixing agent, etc.
Applicable products		Sensors, relays, power adapters, electronic toys, buzzers, electronic components, household appliances, toys, stationery, electric vehicle controllers, computer digital products, handicrafts, mobile phone boards, coil products, key products, battery boxes, speaker outer ring dispensing and bonding, etc
Applicable industries		hotels, clothing stores, building materials stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction projects, energy and mining, food and beverage stores, advertising companies, etc

Products Description

Company Features

· Shenzhen Xiaomao Automation Technology Co.Ltd, one of the leading suppliers of automatic glue dispenser, has been serving the industry for years. And we are proud to say our products are China Made.

· Under the ISO 9001 system, the factory maintains a consistently high level of high-quality by following the same manufacturing, management, and quality control processes on all of our production lines. So far, we have established solid cooperation relationships with customers. In recent years, the average annual export amount to these customers exceeds very high. Our factory has established ourself quality management system on the basis of achieving the ISO 9001 international quality system certification. This offers a quality assurance of all products including automatic glue dispenser.

· Xiaomao Machine renders that we can only succeed if our customers succeed. Contact us!

Product Details

The processing of automatic glue dispenser is carried out with the most advanced technology in the industry to ensure that the following details are better.

Product Comparison

Xiaomao Machine's automatic glue dispenser has been substantially improved in a scientific way, as shown in the following aspects.

Enterprise Advantages

With a major focus on the development of talents, our company has elite teams with rich experience. Our team members are highly educated and highly qualified.

As for the management of customer service, our company insists on integrating standardized service with personalized service, so as to fulfill different service needs of customers. Based on that, we could build a brand image of high-quality service.

Our company always adheres to the enterprise spirit of 'strict and pragmatic, innovative and developing', and follows the business philosophy of 'honesty-based, steady development'. Relying on technological innovation, we improve economic efficiency, and strive to provide consumers with better products and more professional services.

Set up in Xiaomao Machine becomes a leader in the industry through the development for years.

Xiaomao Machine sells Automatic soldering machine,automatic glue dispensing machine,automatic screw locking machine well in the domestic market and exports them to different countries and regions all over the world, based on the high quality and excellent service.
