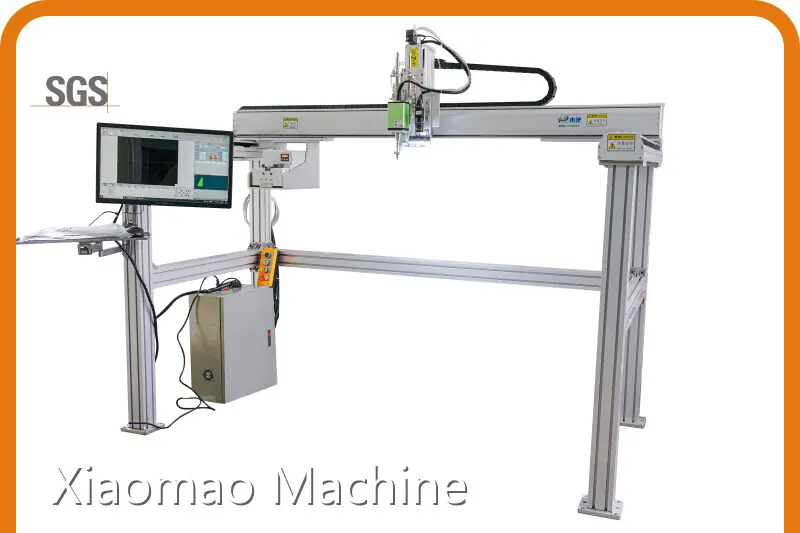

Automatic Screw Locking Machine - - Xiaomao Machine-7
Product details of the automatic screw locking machine
Quick Detail
Xiaomao Machine automatic screw locking machine is designed using the optimum quality material and modern techniques. The quality guarantee system is enhanced to ensure the high quality of this product. Xiaomao Machine's automatic screw locking machine is widely used in the industry and is widely recognized by customers. Shenzhen Xiaomao Automation Technology Co.Ltd is equipped with a full set of production equipment.
Product Introduction
Xiaomao Machine adheres to the principle of 'details determine success or failure' and pays great attention to the details of automatic screw locking machine.
Model | Adsorption type screw locking machine | |
Working range X/Y/Z (mm) | 300*300*100/500*300*300*100 Customizable stroke | |
Programming method | Teaching programming or graphic import | |
Electric screwdriver | Japanese HIOS/intelligent servo electric screwdriver | |
Time to lock a screw (seconds) | 0.6-1.5 | |
Maximum load（kilogram） | 10 | |
Repeat accuracy（mm/Axis） | ±0.02 | |
Feeding method | Screw feeder | |
Motor system | Z-axis | servo/closed loop motor |
X/Y-axis | Japanese micro-stepping precision motor | |
Weight (kg) | 75 | |
Sensor | Japanese Omron | |
Operating system | LCD panel/handheld programmer | |
Transmission method | Z-axis | Taiwan Hiwin screw rod |
X/Y-axis | Italy Elate synchronous belt | |
Main selling point | easy to operate | |
Program storage capacity | 999 parameter files (65,535 points per file) | |
Motion mode | 3 axis | |
Working range X/Y/Z (mm) | Model can be customized | |
Maximum speed (mm/s) | 800 | |
Marketing type | Ordinary product | |
Showroom location | Germany | |
Health condition | New | |
Warranty | 1 year | |
Core component warranty | 1 year | |
Mechanical test report | Provided | |
Video shipment inspection | Provided | |
Origin | Guangdong, China | |
Core components | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump | |
Applicable screws: | slotted screws, cross screws, plum screws, hexagon screws, triangular screws, H-slot screws, nuts, special-shaped screws with washers, etc | |
Applicable products
| Mobile phones, computers, smart wearable devices, communication base station modules, automotive instrument sensors, LED lamps, home appliance control panels, medical device housings, security monitoring hosts, new energy battery modules and other electronic, electromechanical and light industrial products that require precision screw locking | |
Applicable industries | home appliances, hardware, communication equipment, automotive electronics, hotels, clothing stores, building materials stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction projects, energy and mining, food and beverage stores, advertising companies, etc | |
FAQ
Company Introduction
Shenzhen Xiaomao Automation Technology Co.Ltd is a modern company with a high level in the industry. The main business is to produce, process and sell Automatic soldering machine,automatic glue dispensing machine,automatic screw locking machine. We have a sound after-sales service system to provide every customer with a wholehearted service, so that consumers' rights and interests are guaranteed. You are always welcomed for inquiry.
