Screw Feeding Machine 1 Yearsupply

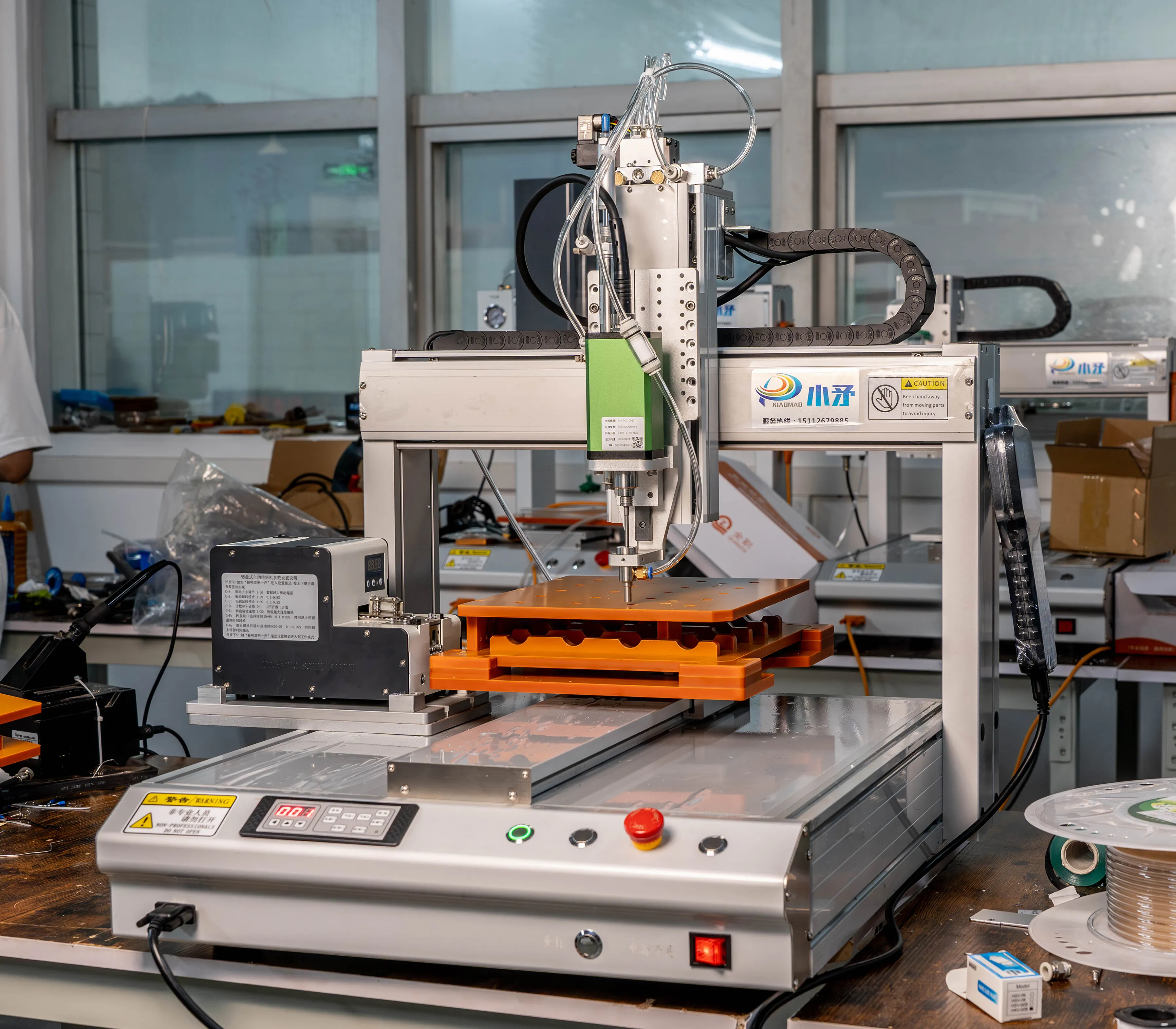

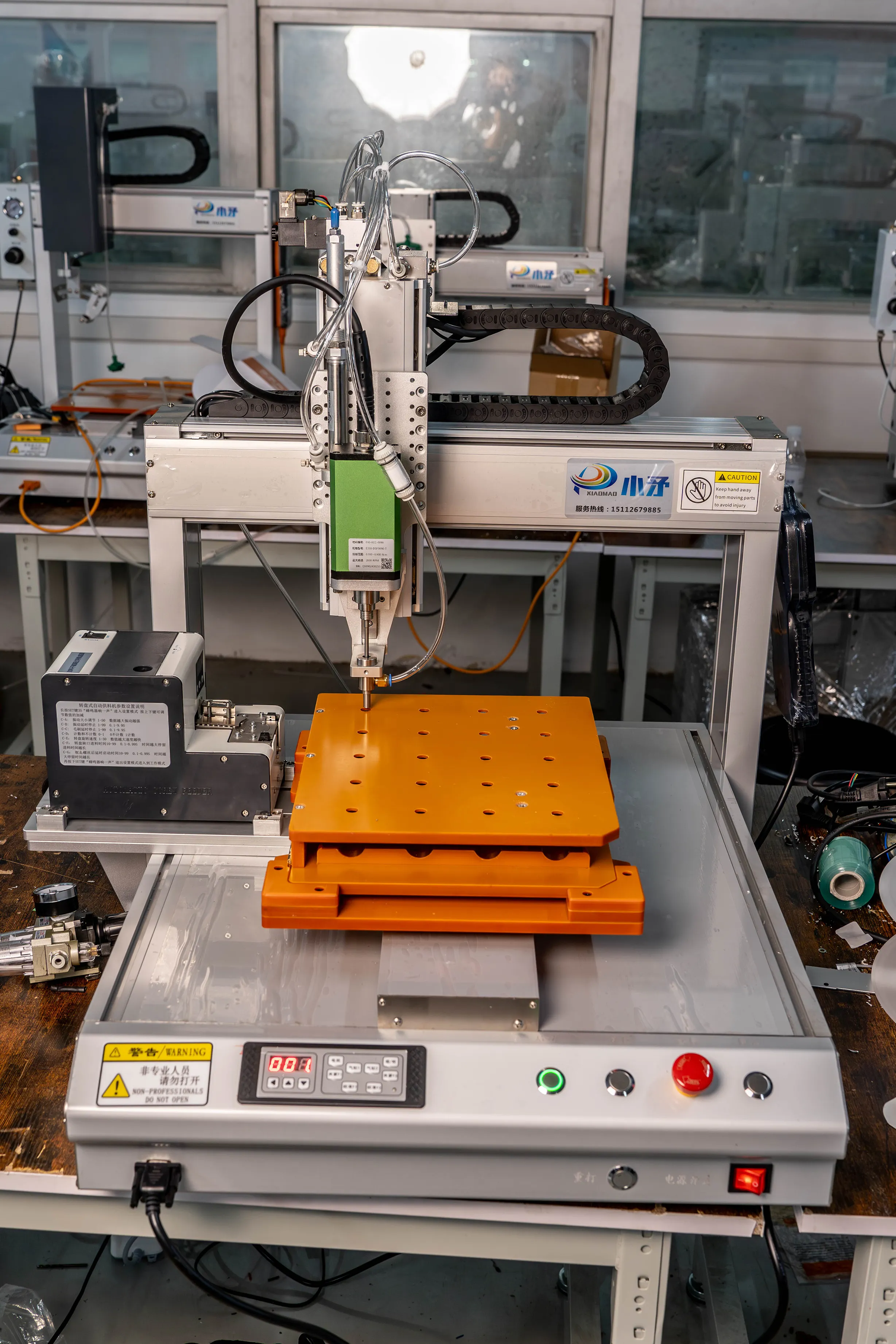

Product details of the screw feeding machine

Product Specification

Warranty of core components: 1 Year

Repetitive round-trip accuracy (MM): ±0.02MM-0.05MM

Video outgoing-inspection: Provided

Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Machinery Test Report: Provided

Quick Detail

screw feeding machine is designed to scientific and reasonable with a safe and reliable quality. It is easy for people to operate and install. It greatly reduces operation costs due to good energy saving effect. Xiaomao Machine screw feeding machine is fabricated using the top-grade raw material and sophisticated production technology. In order to ensure its durability, the extra add quality testing is added to the production. screw feeding machine is widely used in the industrial production, including cutting and deep processing of various metal tubes. Shenzhen Xiaomao Automation Technology Co.Ltd has established a strong foundation for customer service.

Product Introduction

Compared with other similar products, our screw feeding machine has more advantages, specifically in the following aspects.

Model		Adsorption type screw locking machine
Working range X/Y/Z (mm)		300*300*100/500*300*300*100 Customizable stroke
Programming method		Teaching programming or graphic import
Electric screwdriver		Japanese HIOS/intelligent servo electric screwdriver
Time to lock a screw (seconds)		0.6-1.5
Maximum load（kilogram）		10
Repeat accuracy（mm/Axis）		±0.02
Feeding method		Screw feeder
Motor system	Z-axis	servo/closed loop motor
	X/Y-axis	Japanese micro-stepping precision motor
Weight (kg)		75
Sensor		Japanese Omron
Operating system		LCD panel/handheld programmer
Transmission method	Z-axis	Taiwan Hiwin screw rod
	X/Y-axis	Italy Elate synchronous belt
Main selling point		easy to operate
Program storage capacity		999 parameter files (65,535 points per file)
Motion mode		3 axis
Working range X/Y/Z (mm)		Model can be customized
Maximum speed (mm/s)		800
Marketing type		Ordinary product
Showroom location		Germany
Health condition		New
Warranty		1 year
Core component warranty		1 year
Mechanical test report		Provided
Video shipment inspection		Provided
Origin		Guangdong, China
Core components		PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
Applicable screws:		slotted screws, cross screws, plum screws, hexagon screws, triangular screws, H-slot screws, nuts, special-shaped screws with washers, etc
Applicable products		Mobile phones, computers, smart wearable devices, communication base station modules, automotive instrument sensors, LED lamps, home appliance control panels, medical device housings, security monitoring hosts, new energy battery modules and other electronic, electromechanical and light industrial products that require precision screw locking
Applicable industries		home appliances, hardware, communication equipment, automotive electronics, hotels, clothing stores, building materials stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction projects, energy and mining, food and beverage stores, advertising companies, etc



Products Description

Company Information

Shenzhen Xiaomao Automation Technology Co.Ltd is a company in Automatic soldering machine,automatic glue dispensing machine,automatic screw locking machine is one of our main products. After years of unremitting efforts, Xiaomao Machine independently created Xiaomao Machine. And we have developed and manufactured multi series of machinery and supporting equipment. With the service concept of 'customer first, service first', Xiaomao Machine constantly improves the service and strive to provide professional, high-quality and comprehensive services for customers. Our company has advanced production equipment and professional management team. Based on the strong R&D and production strength, we can provide customers with professional custom services.
Xiaomao Machine's Automatic soldering machine,automatic glue dispensing machine,automatic screw locking machine are produced and sold directly from the factory. They have reliable quality and reasonable price. Bulk purchase is available. If needed, please contact us!
