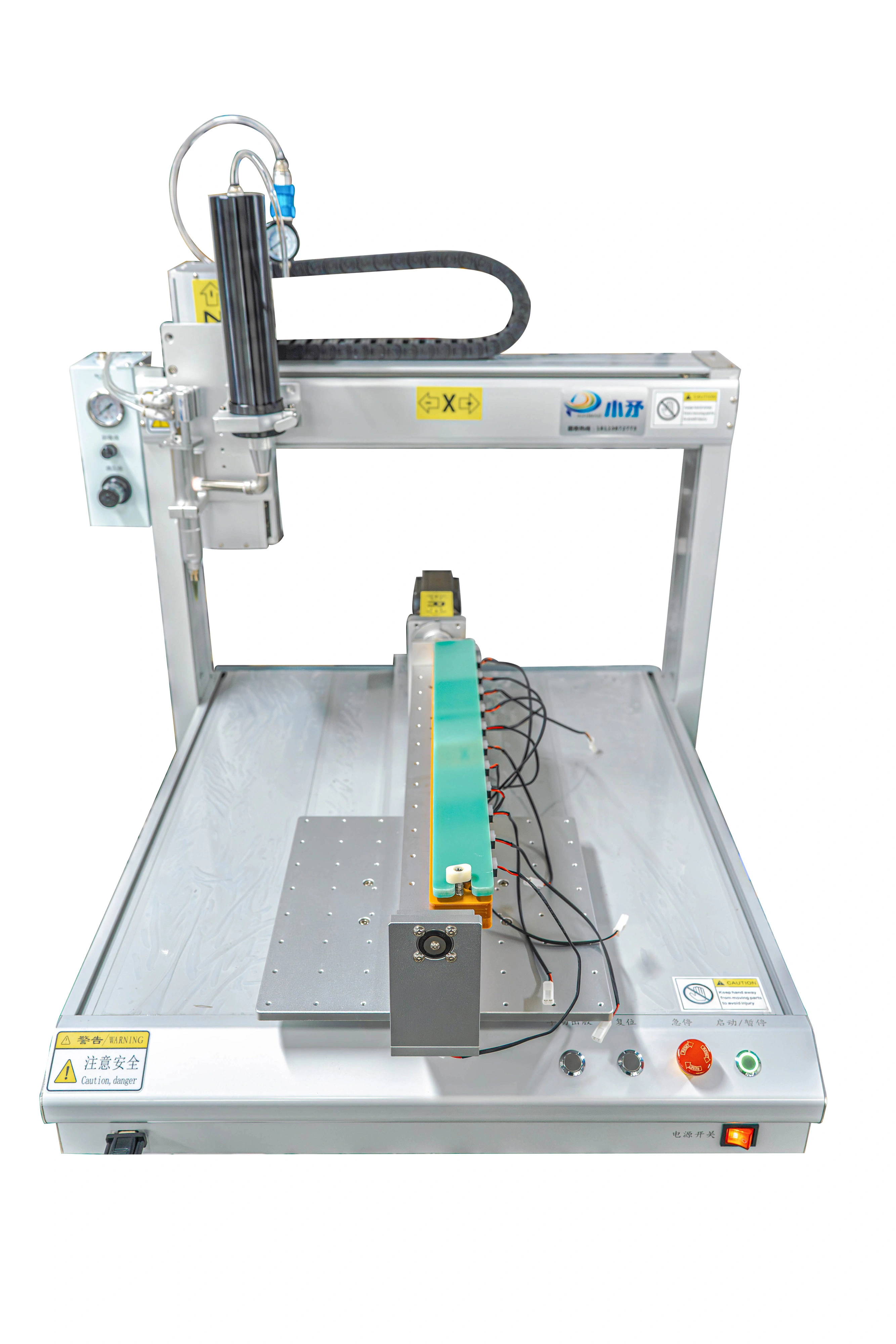

Single-station Y-axis rotating 300ml silicone dispensing machine for terminal wires
This single-station Y-axis rotating terminal wire 300ml silicone dispensing machine has a Y-axis rotating design that can flexibly adjust the dispensing angle, accurately adapt to the complex structure of the terminal wire, ensure that the silicone uniformly covers the key parts, and improve the sealing and stability of the product. The 300ml large-capacity glue cartridge reduces frequent glue changes and improves production efficiency. In the dispensing process, a high-precision control system is adopted, the glue output is stable, and the speed is adjustable, which can achieve precise control of small dispensing amounts to avoid glue waste and overflow problems.
This equipment is widely used in the electronic and electrical industry for dispensing and sealing of components such as terminal wires and connectors; in the automotive manufacturing field, it is used for protective dispensing of automotive wiring harnesses; and in the lighting industry, it is used to fix and seal the internal circuits of lamps. It is an ideal choice for improving product quality and production efficiency.
1.Provide automated production solutions
2.24-hour global one-to-one efficient service.
3.Strong manufacturing, professional customization, quality assurance.
4.Have ISO, TUV and other international quality certifications.
5.Fast delivery, professional transportation.
6.On-site installation, simple and efficient.
Service:
Design and customize models, various styles, strong structure, support teaching, convenient transportation
Origin:
Shenzhen, Guangdong, China
Brand name:
Xiaomao Automation
More Choices
Model | Automatic silicone dispensing machine | |
Working range X/Y/Z (mm) | 300*300*100/500*300*300*100 Customizable stroke | |
Programming method | Teaching programming or graphic import | |
Moving graphic trajectory | Point, straight line, arc, full circle, curve, polyline, spiral, ellipse | |
Dispensing valve | Precision dispensing valve | |
Glue dispensing bucket | Optional capacity | |
Minimum discharge volume (mm) | 0.01 | |
Dispensing frequency (times/second) | 5 | |
Load (kg)
| X/Y axis | 10 |
Z axis | 5 | |
Weight (kg) | 45/55/65/75/85 | |
Motion system | Nihono stepper motor, driver | |
Operating system | LCD panel/handheld programmer | |
Repeat positioning accuracy (mm) | Screw drive | ±0.01-0.02 |
Synchronous belt | ±0.02-0.04 | |
Machine size (MM) | 540*580*650 | |
Program storage capacity | 999 parameter files (65,535 points per file) | |
Transmission method | Upper silver rail (slider) | |
Maximum speed (mm/s) | 600 | |
Marketing type | Ordinary product | |
Showroom location | Germany | |
Health condition | New | |
Warranty | 1 year | |
Core component warranty | 1 year | |
Mechanical test report | Provided | |
Video shipment inspection | Provided | |
Origin | Guangdong, China | |
Core components | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump | |
Applicable glue | Silicone | |
Applicable products
| Sensors, relays, power adapters, electronic toys, buzzers, electronic components, household appliances, toys, stationery, electric vehicle controllers, computer digital products, handicrafts, mobile phone boards, coil products, key products, battery boxes, speaker outer ring dispensing and bonding, etc | |
Applicable industries | hotels, clothing stores, building materials stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction projects, energy and mining, food and beverage stores, advertising companies, etc | |
