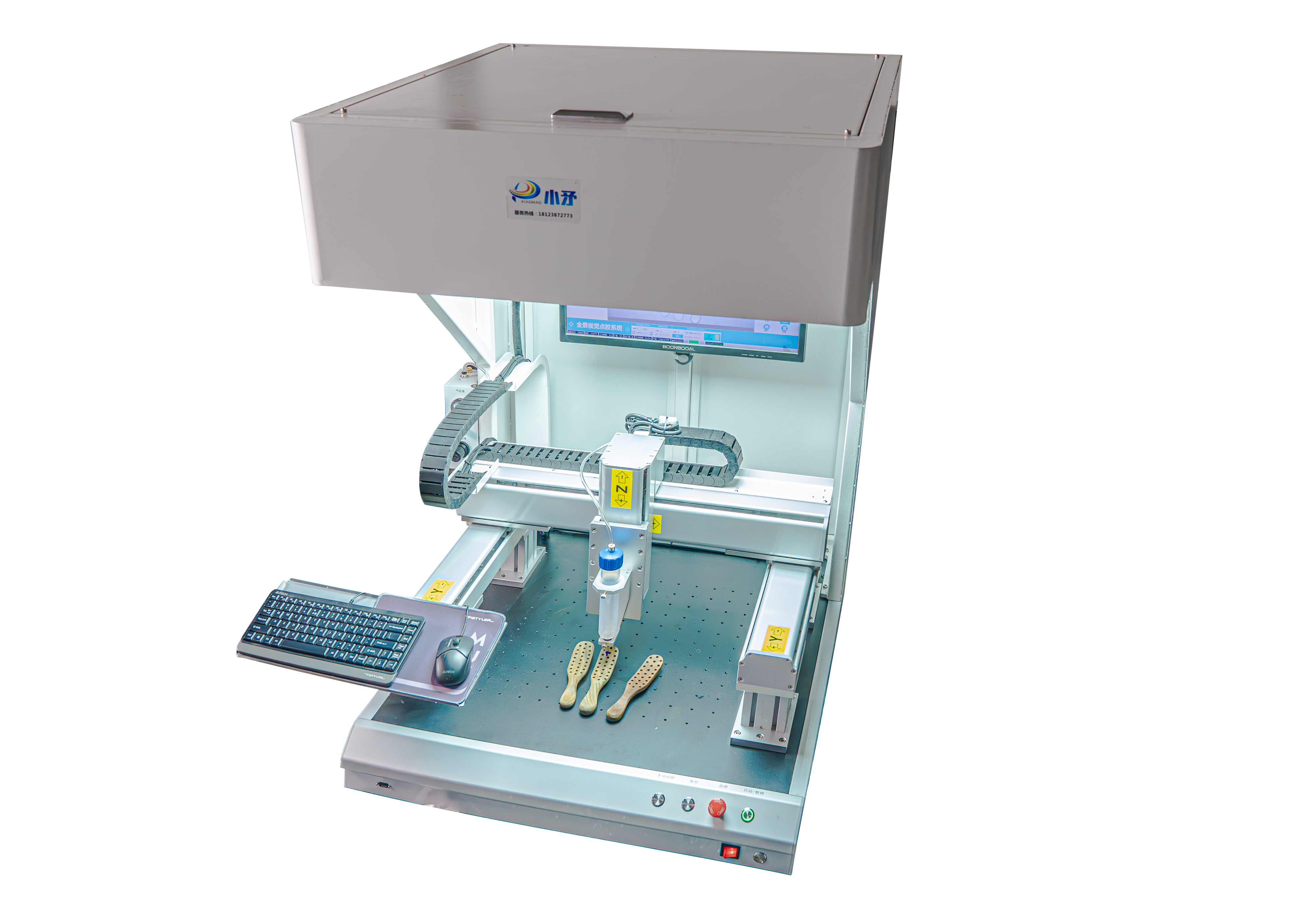

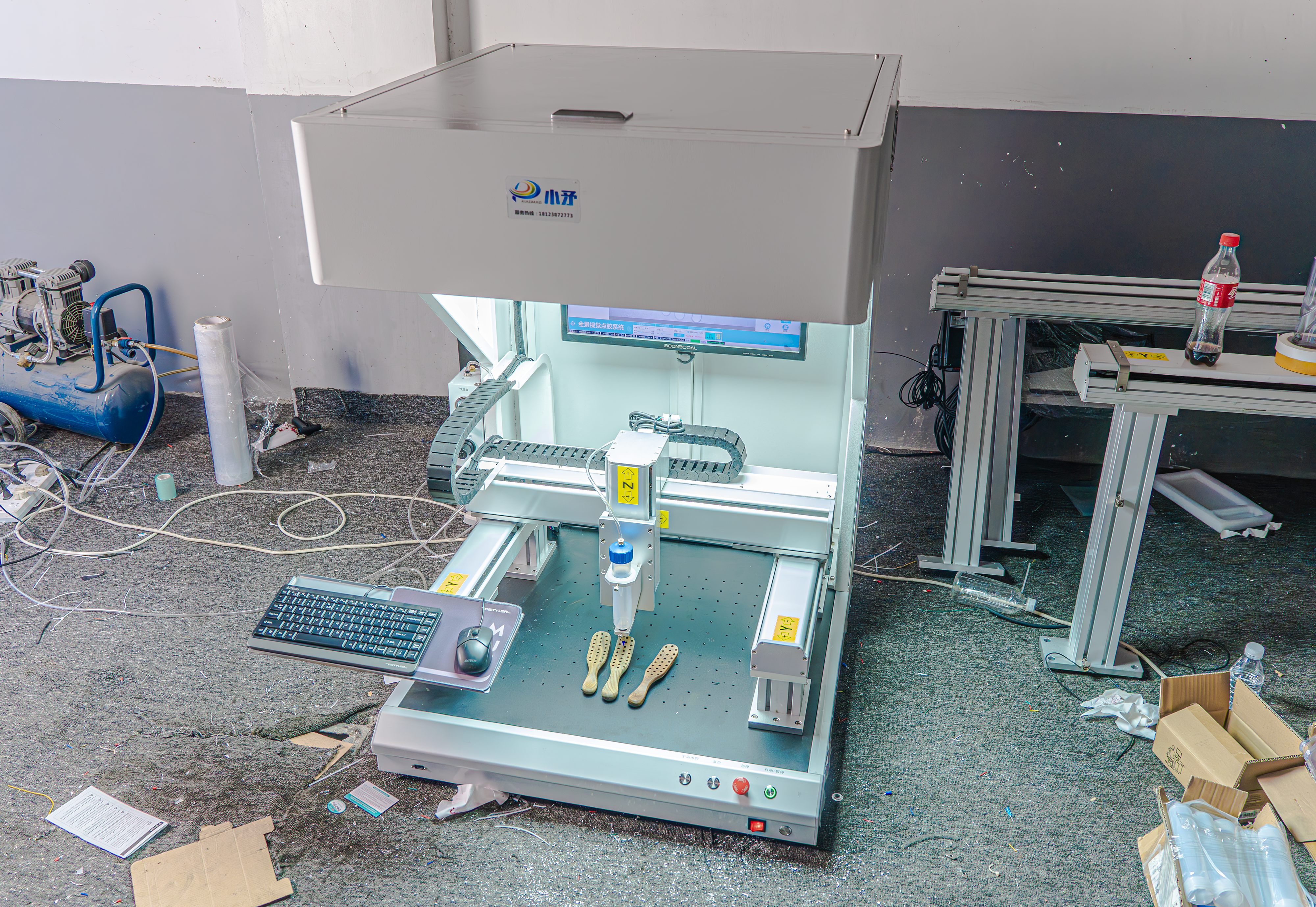

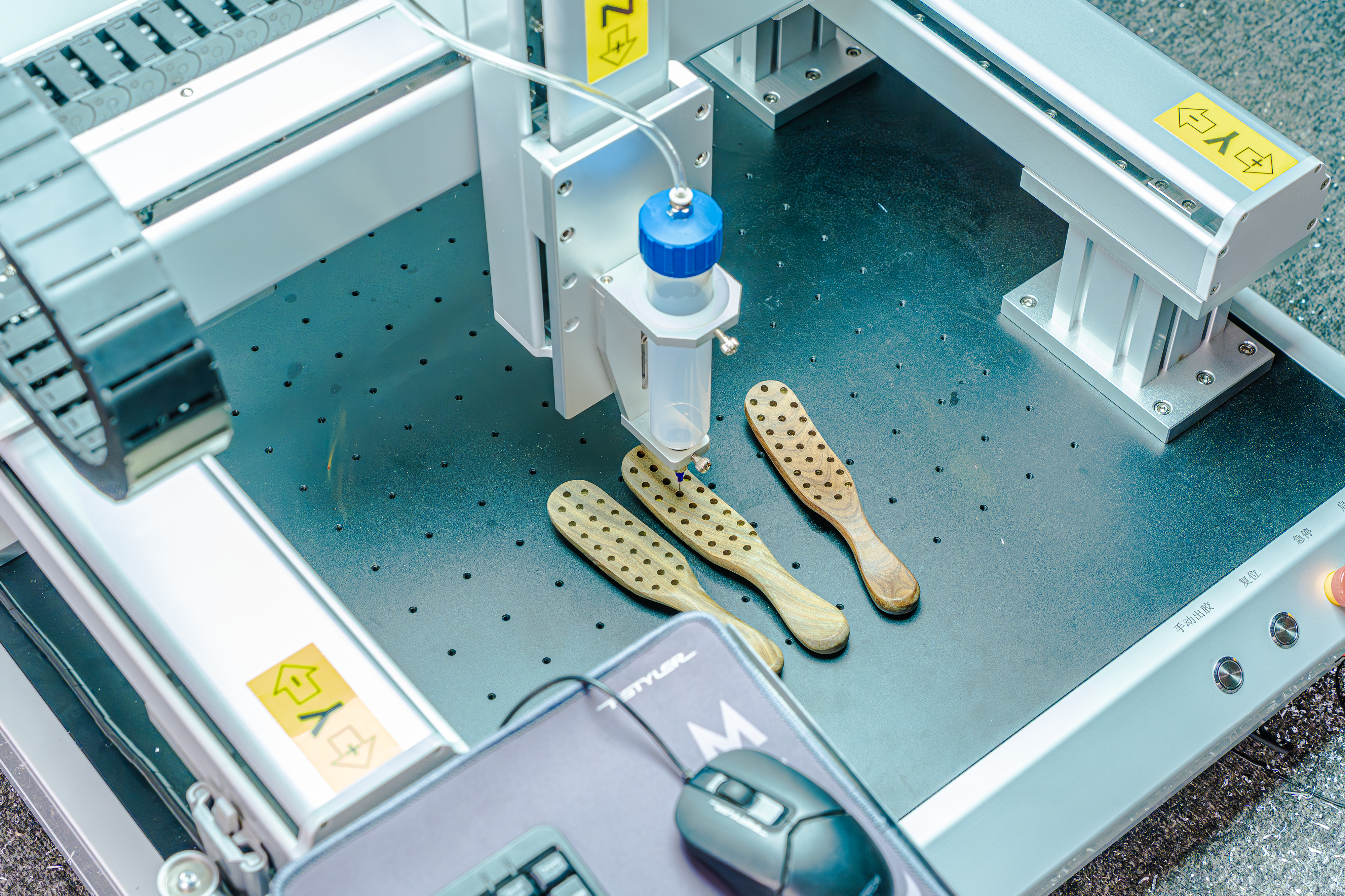

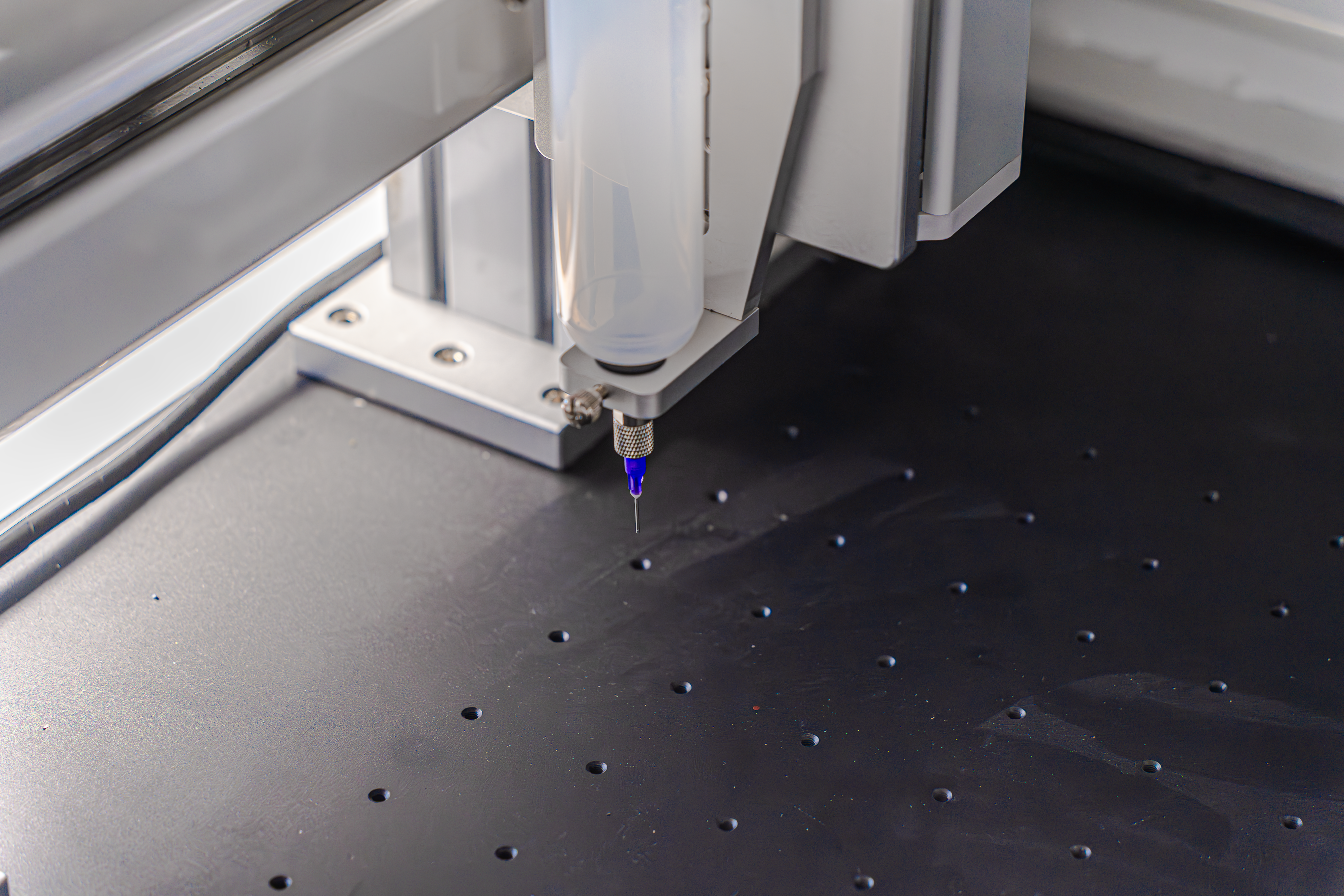

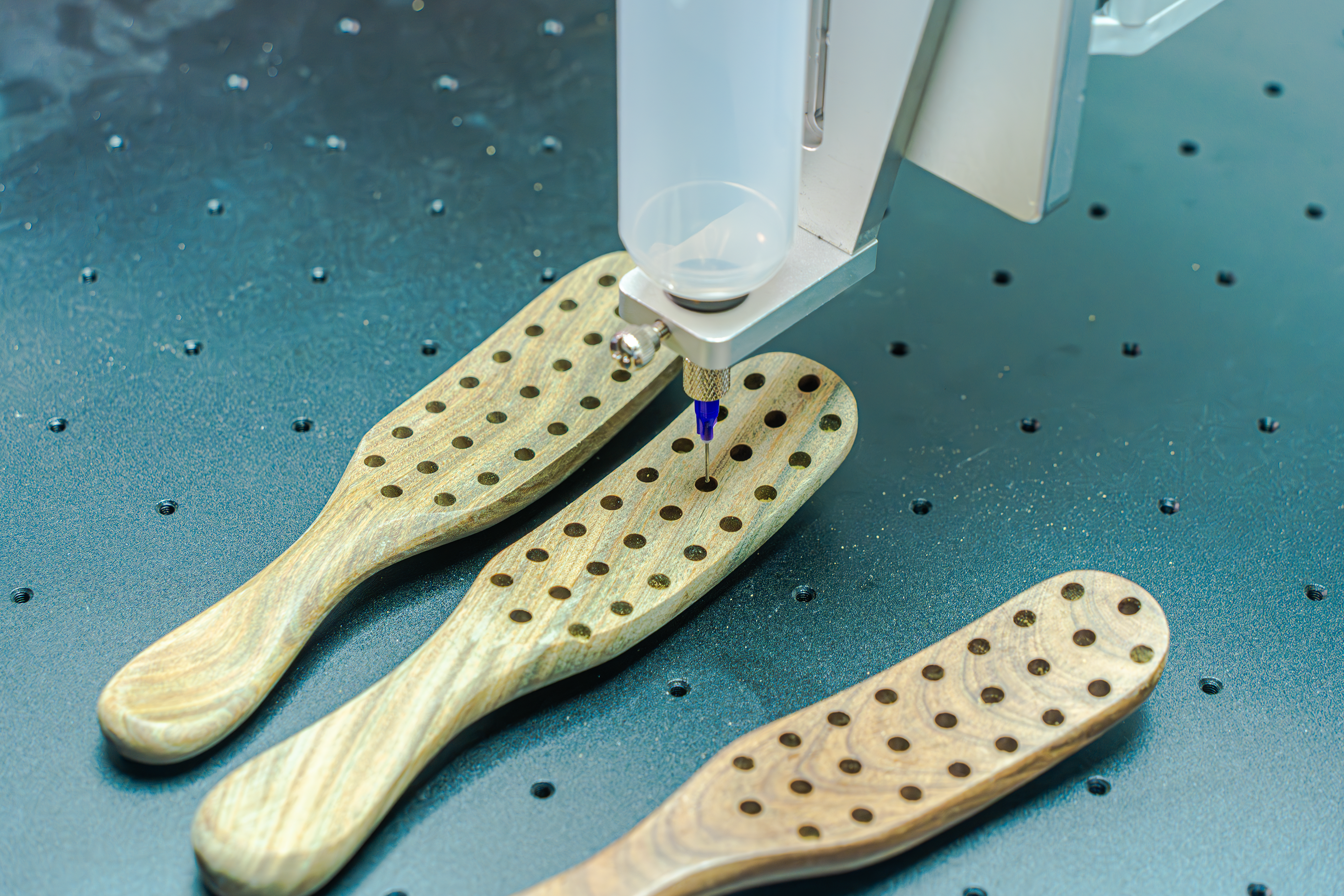

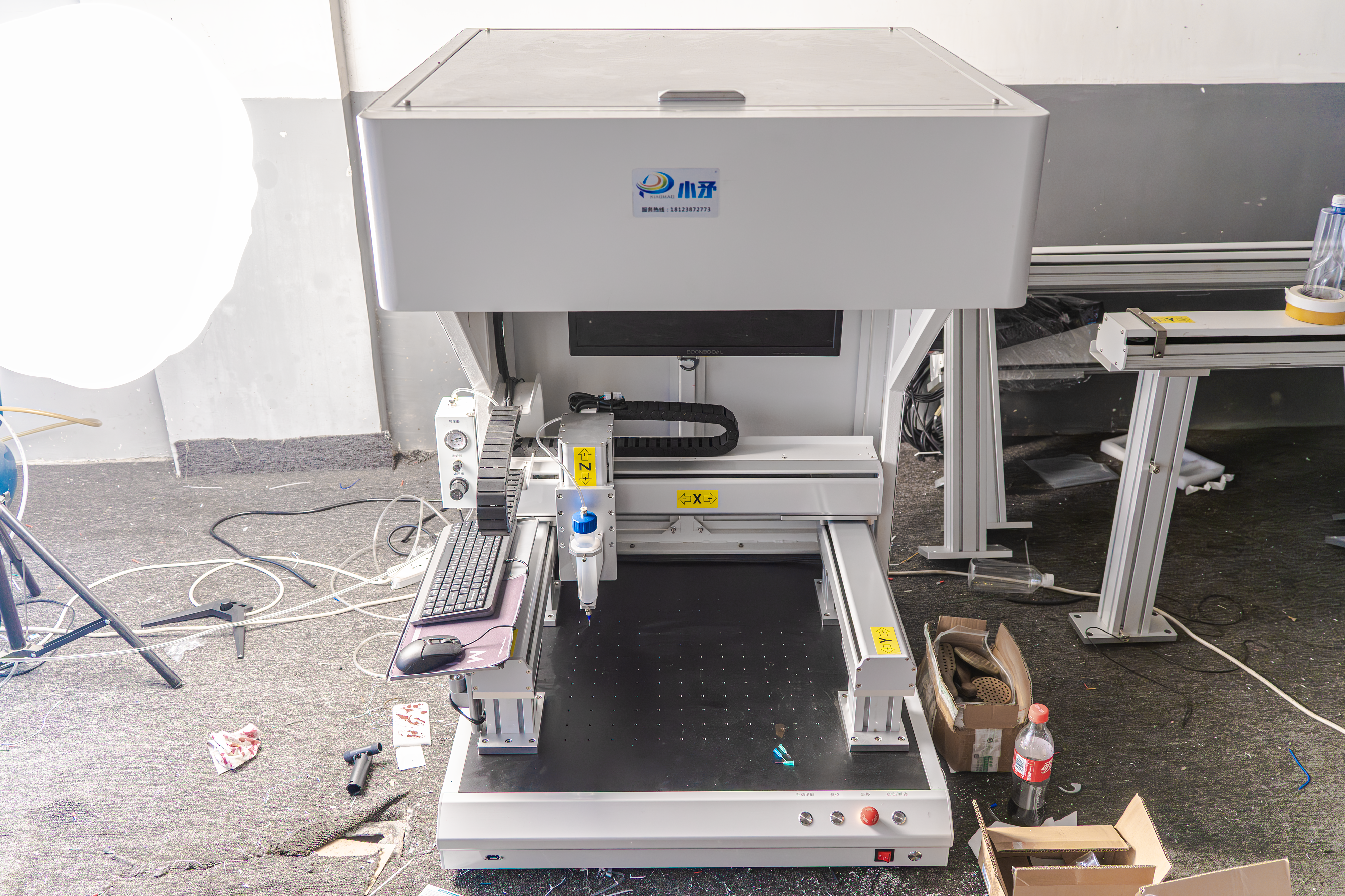

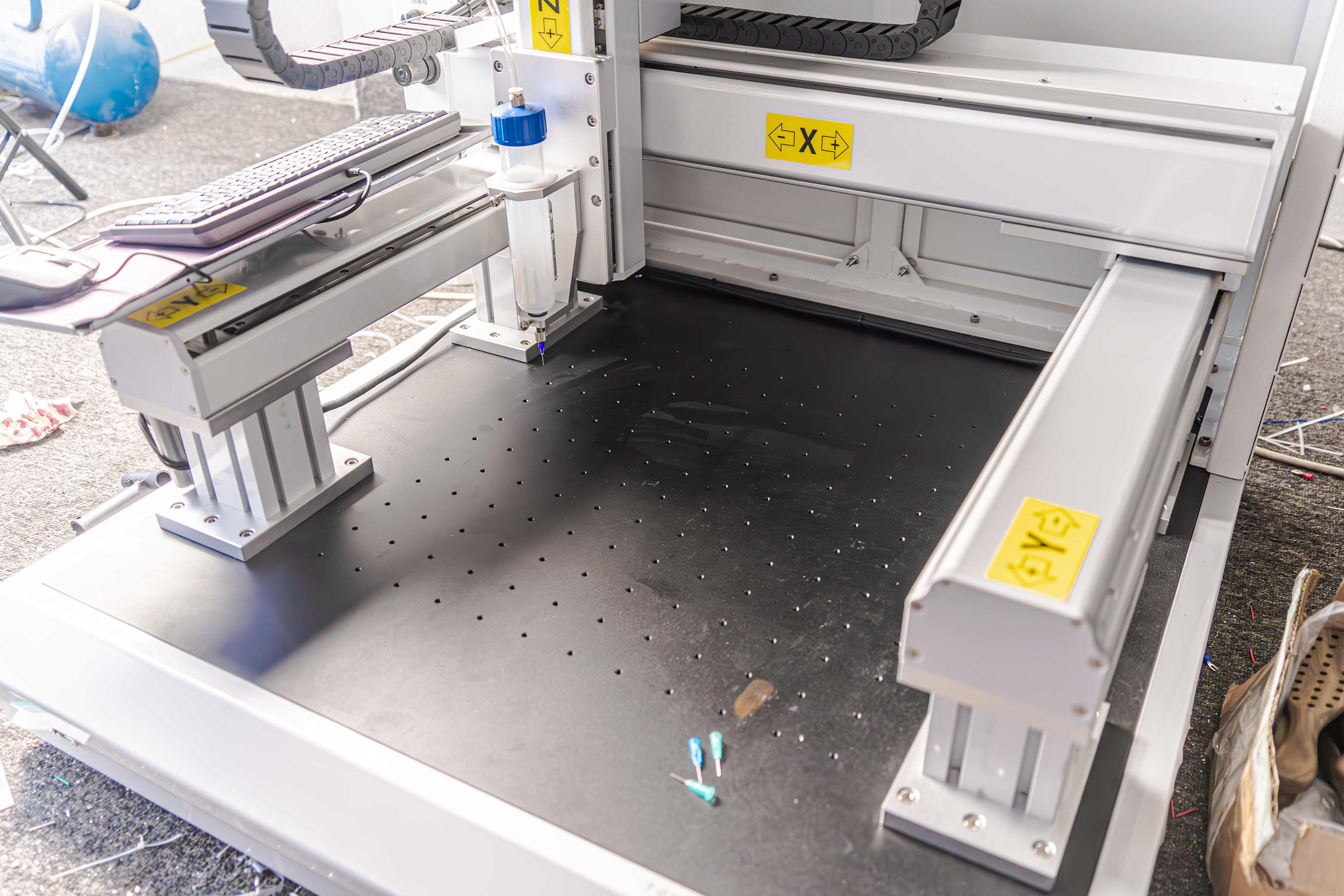

Visual gantry dispensing machine for wooden combs
2.24-hour global one-to-one efficient service.
3.Strong manufacturing, professional customization, quality assurance.
4.Have ISO, TUV and other international quality certifications.
5.Fast delivery, professional transportation.
6.On-site installation, simple and efficient.
Service:
Design and customize models, various styles, strong structure, support teaching, convenient transportation
Origin:
Shenzhen, Guangdong, China
Brand name:
Xiaomao Automation
More Choices
Model | Automatic dispensing machine | |
Working range X/Y/Z (mm) | 300*300*100, Customizable stroke | |
Programming method | Industrial Computer | |
Moving graphic trajectory | Point, straight line, arc, full circle, curve, polyline, spiral, ellipse | |
Visual positioning system | 500W/1000W pixel ultra-high-speed camera system | |
Effective field of view (mm) | 300*200 (panoramic 400*300) | |
Single detection time (seconds) | 0.1 | |
Dispensing accuracy (mm) | ±0.15 | |
Load (kg)
| X/Y axis | 10 |
Z axis | 5 | |
Axis speed X/Y/Z (mm/second) | 0-600 | |
Transmission mode | Guide rail | Taiwan Hiwin linear guide rail |
Screw rod | Taiwan Hiwin screw rod | |
Motion interpolation function | 3 axes | |
Repeat positioning accuracy (mm) | Screw drive | ±0.01-0.02 |
Synchronous belt | ±0.02-0.04 | |
Machine size (MM) | (X-axis travel +250)*(Y-axis travel +300)*700 | |
Program storage capacity | 999 parameter files (65,535 points per file) | |
Display mode | LCD teaching box | |
Motor system | Japanese micro-stepping precision motor | |
Marketing type | Ordinary product | |
Showroom location | Germany | |
Health condition | New | |
Warranty | 1 year | |
Core component warranty | 1 year | |
Mechanical test report | Provided | |
Video shipment inspection | Provided | |
Origin | Guangdong, China | |
Core components | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump | |
Applicable glue | UV glue, AB glue, black glue, white glue, yellow glue, EMI conductive glue, anaerobic glue, epoxy resin, instant glue, silver glue, red glue, solder paste, heat dissipation paste, solder mask, transparent paint, lubricating oil, flux, screw fixing agent, etc. | |
Applicable products
| Sensors, relays, power adapters, electronic toys, buzzers, electronic components, household appliances, toys, stationery, electric vehicle controllers, computer digital products, handicrafts, mobile phone boards, coil products, key products, battery boxes, speaker outer ring dispensing and bonding, etc | |
Applicable industries | hotels, clothing stores, building materials stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction projects, energy and mining, food and beverage stores, advertising companies, etc | |
