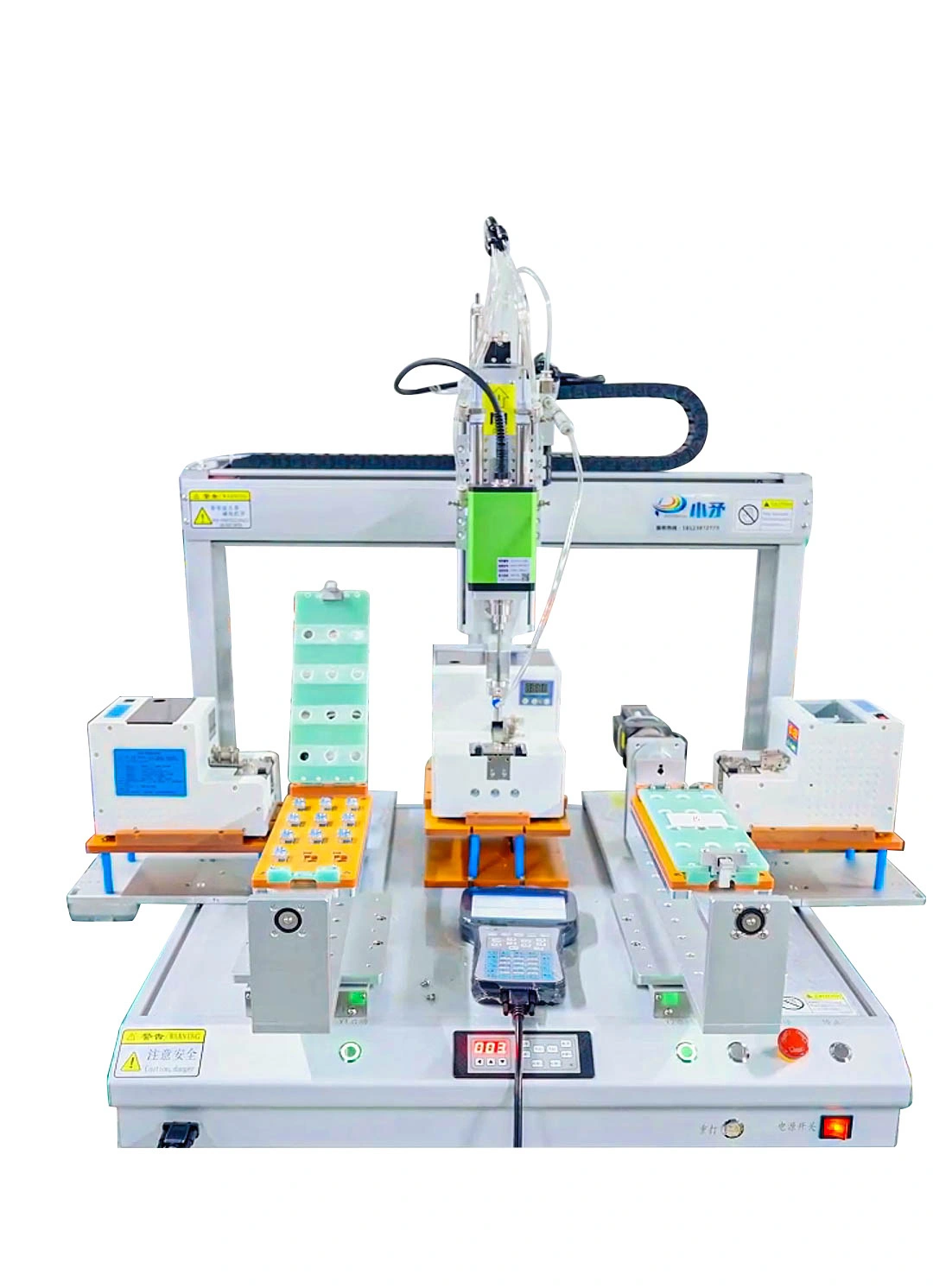

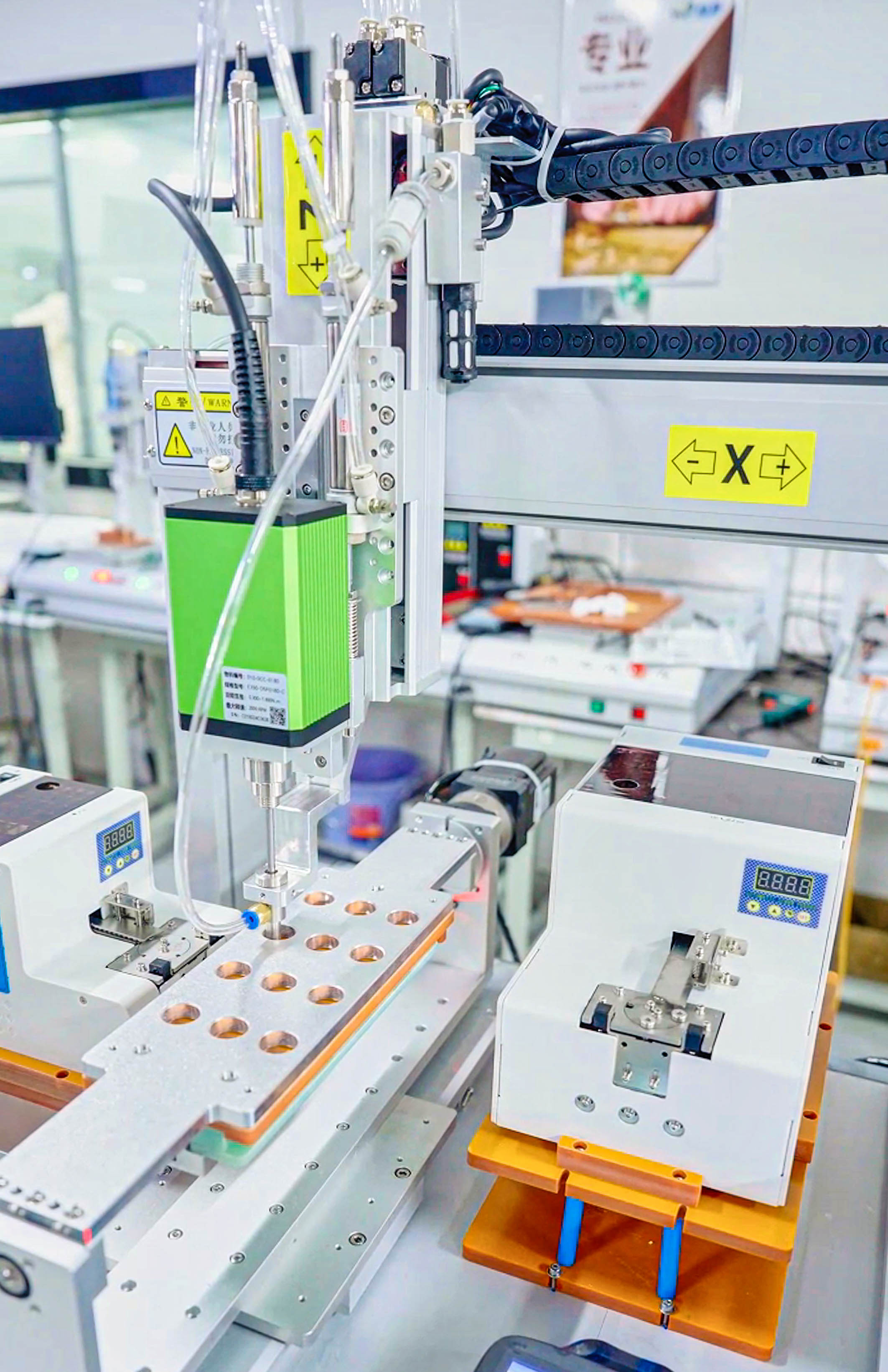

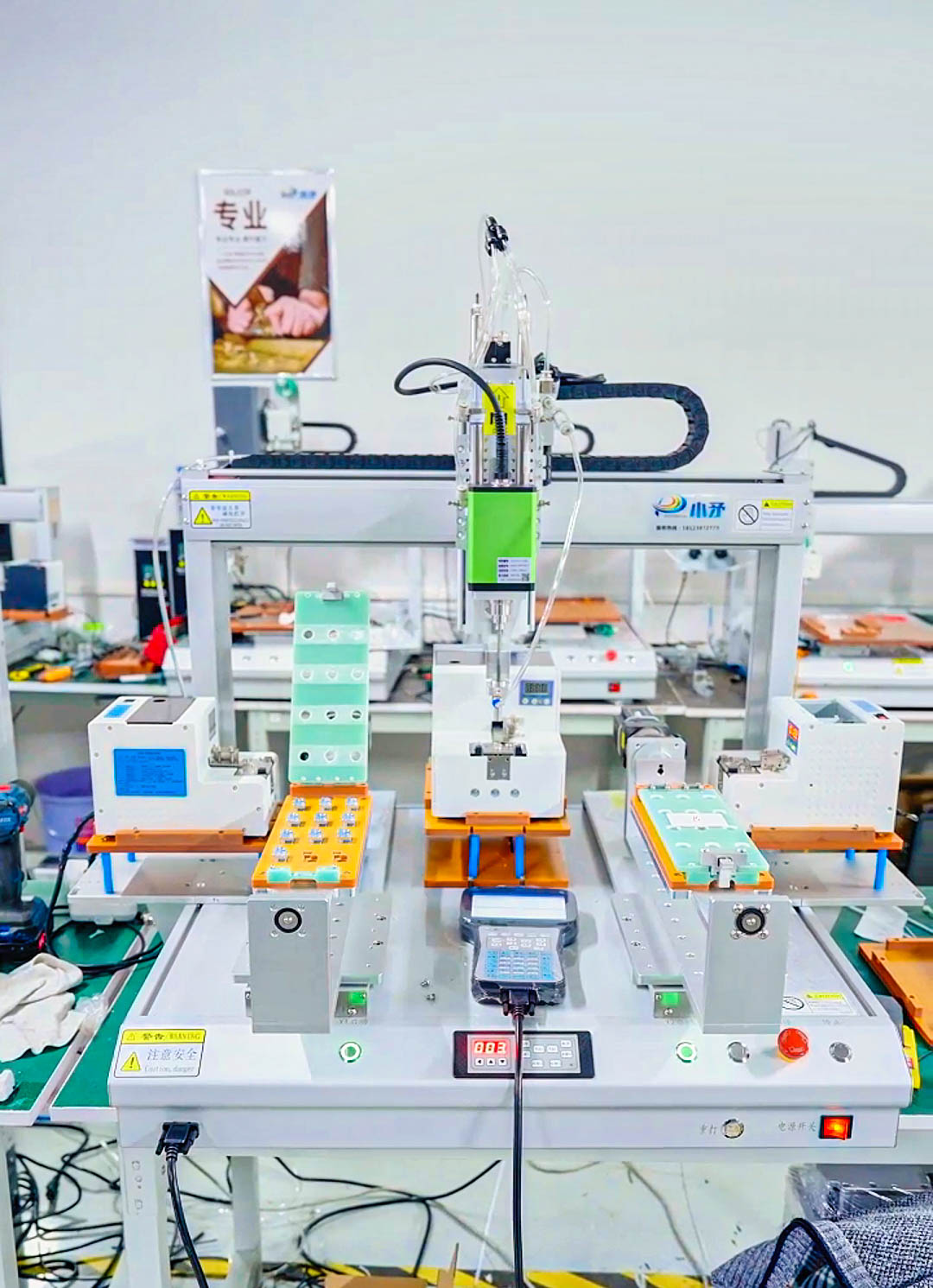

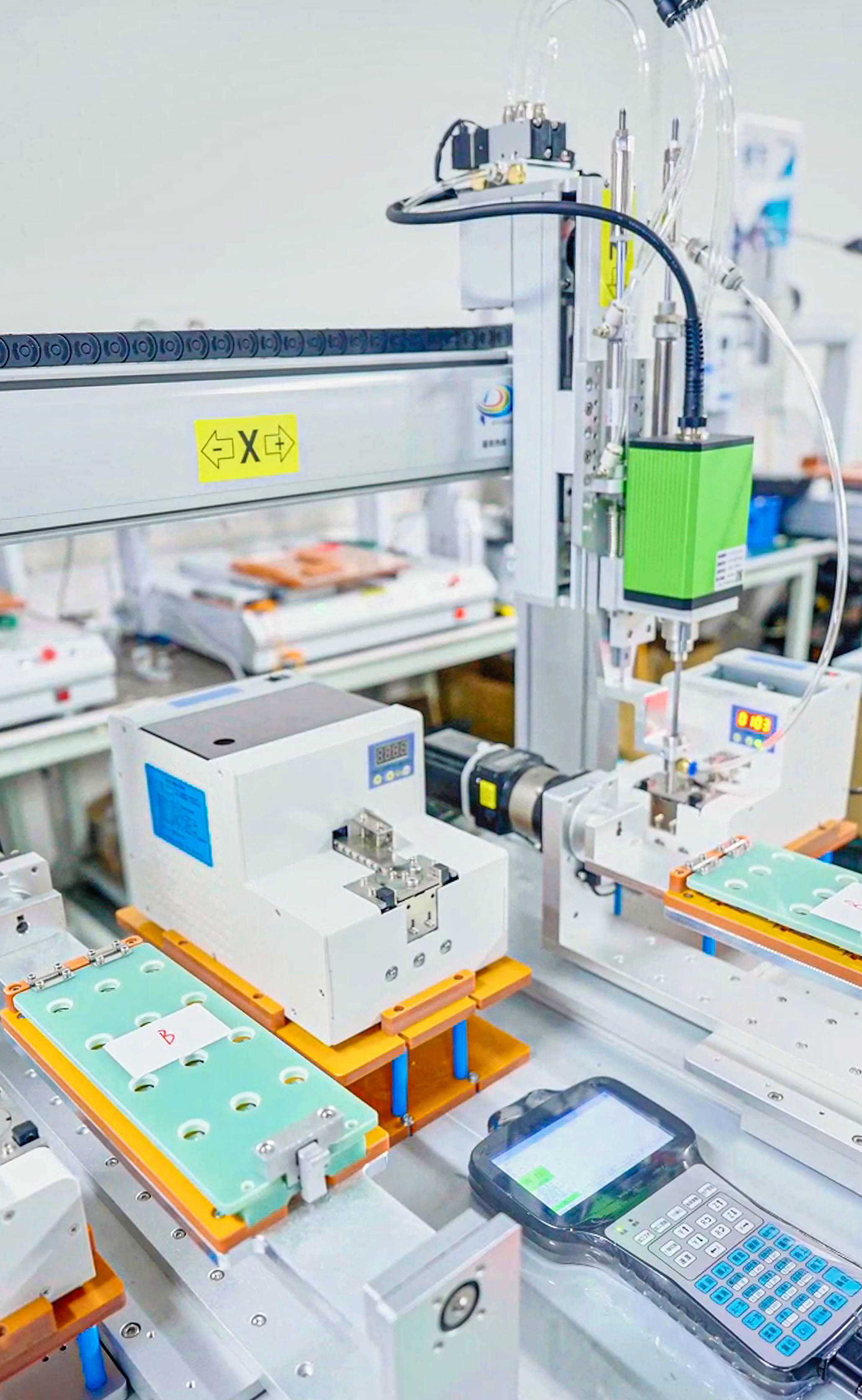

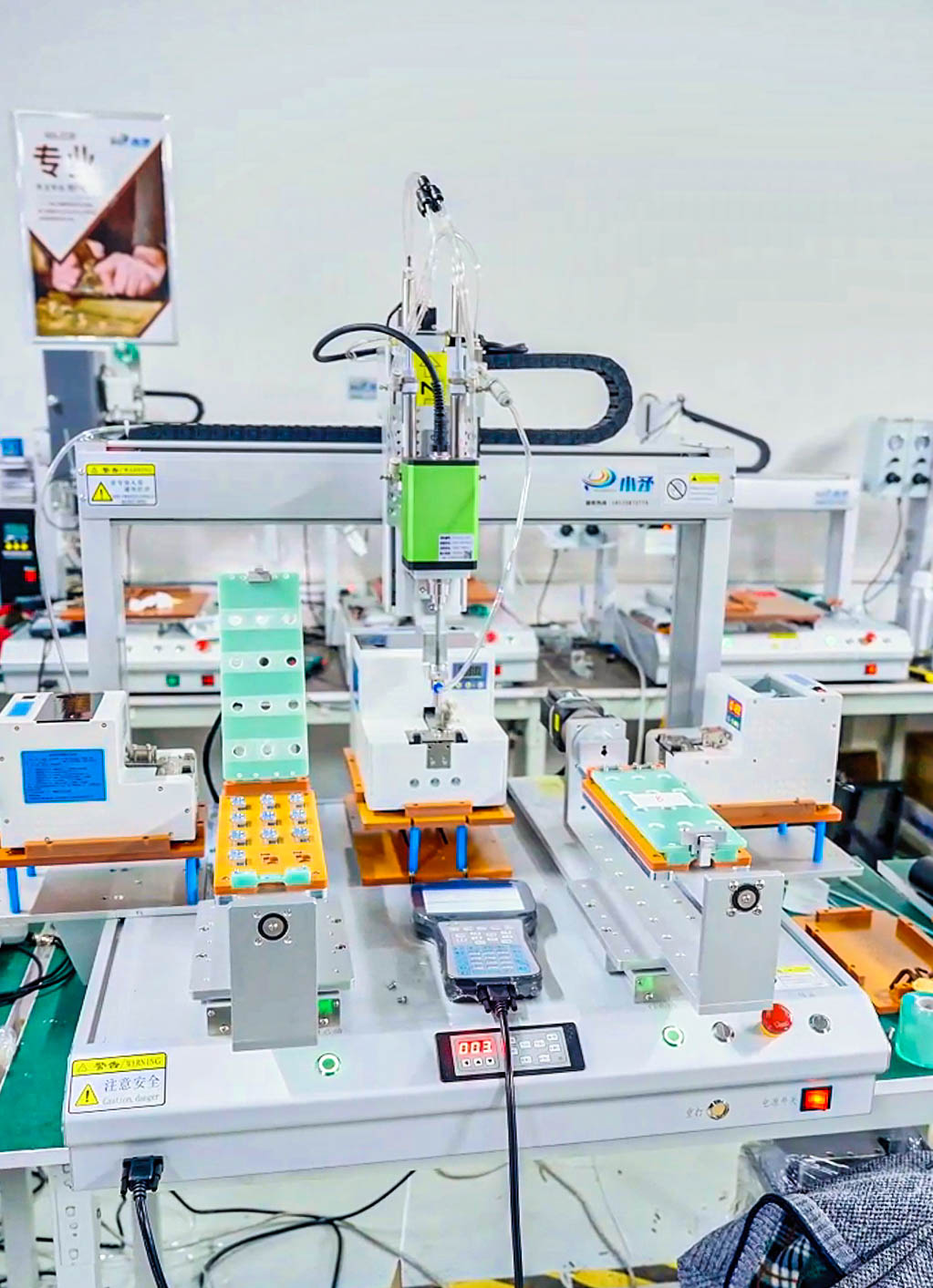

Three-feeder double-station screw locking machine
2.24-hour global one-to-one efficient service.
3.Strong manufacturing, professional customization, quality assurance.
4.Have ISO, TUV and other international quality certifications.
5.Fast delivery, professional transportation.
6.On-site installation, simple and efficient.
Service:
Design and customize models, various styles, strong structure, support teaching, convenient transportation
Origin:
Shenzhen, Guangdong, China
Brand name:
Xiaomao Automation
More Choices
Model | Adsorption type screw locking machine | |
Working range X/Y/Z (mm) | 300*300*100/500*300*300*100 Customizable stroke | |
Programming method | Teaching programming or graphic import | |

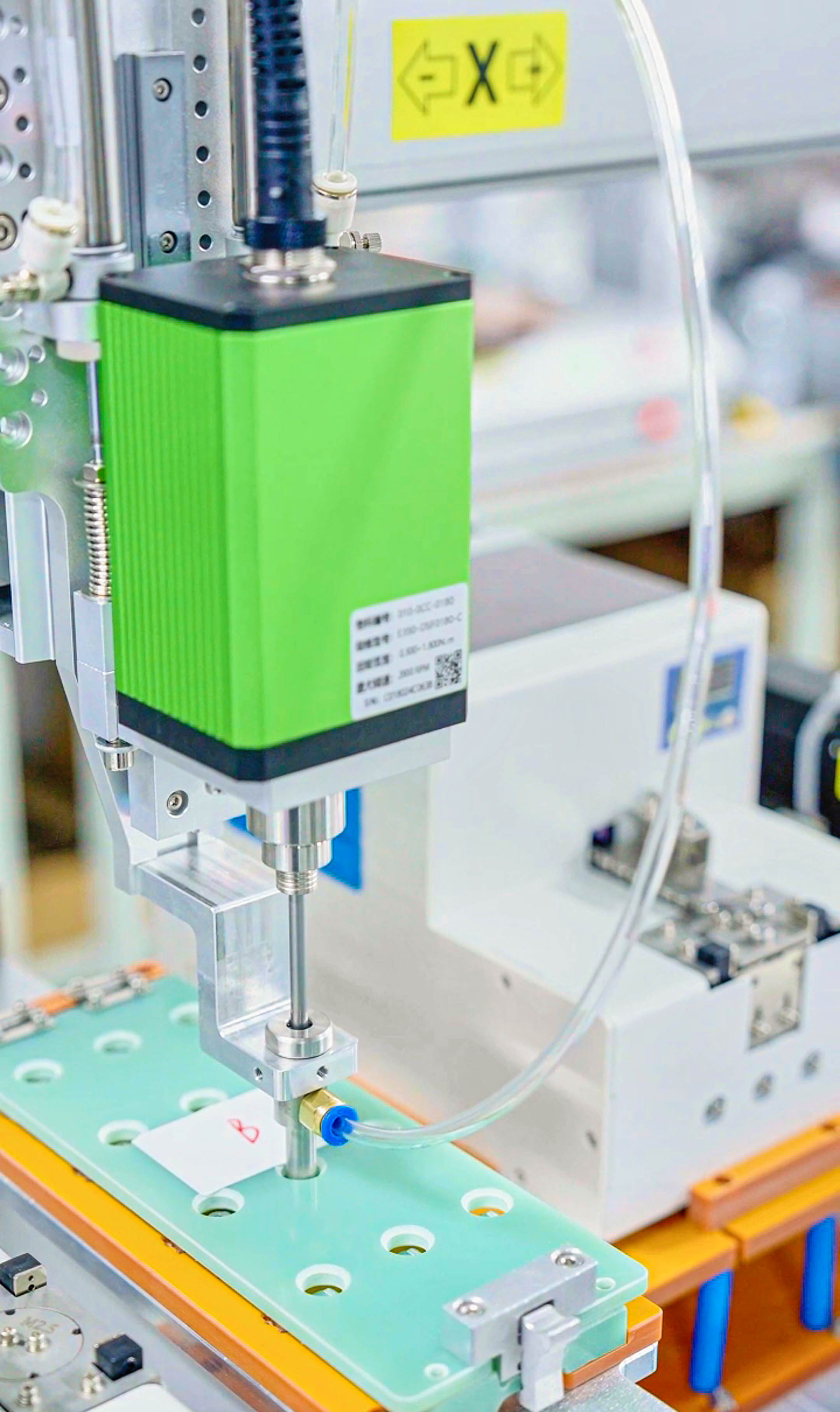

Electric screwdriver | Japanese HIOS/intelligent servo electric screwdriver | |
Time to lock a screw (seconds) | 0.6-1.5 | |
Maximum load（kilogram） | 10 | |
Repeat accuracy（mm/Axis） | ±0.02 | |

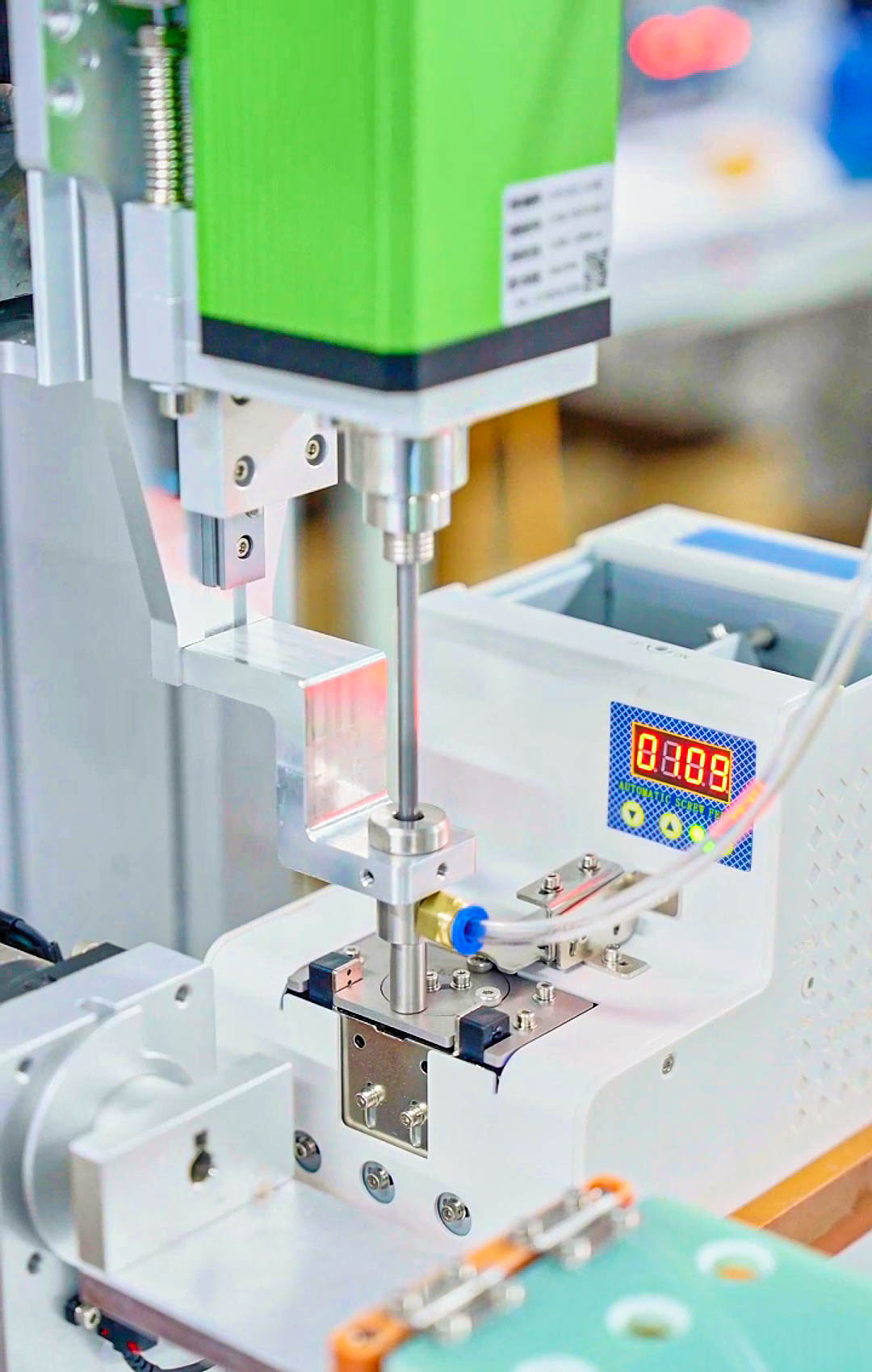

Feeding method | Screw feeder | |
Motor system | Z-axis | servo/closed loop motor |
X/Y-axis | Japanese micro-stepping precision motor | |
Weight (kg) | 75 | |
Sensor | Japanese Omron | |
Operating system | LCD panel/handheld programmer | |
Transmission method | Z-axis | Taiwan Hiwin screw rod |
X/Y-axis | Italy Elate synchronous belt | |
Main selling point | easy to operate | |
Program storage capacity | 999 parameter files (65,535 points per file) | |
Motion mode | 3 axis | |
Working range X/Y/Z (mm) | Model can be customized | |
Maximum speed (mm/s) | 800 | |
Marketing type | Ordinary product | |
Showroom location | Germany | |
Health condition | New | |
Warranty | 1 year | |
Core component warranty | 1 year | |
Mechanical test report | Provided | |
Video shipment inspection | Provided | |
Origin | Guangdong, China | |
Core components | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump | |
Applicable screws: | slotted screws, cross screws, plum screws, hexagon screws, triangular screws, H-slot screws, nuts, special-shaped screws with washers, etc | |
Applicable products
| Mobile phones, computers, smart wearable devices, communication base station modules, automotive instrument sensors, LED lamps, home appliance control panels, medical device housings, security monitoring hosts, new energy battery modules and other electronic, electromechanical and light industrial products that require precision screw locking | |
Applicable industries | home appliances, hardware, communication equipment, automotive electronics, hotels, clothing stores, building materials stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction projects, energy and mining, food and beverage stores, advertising companies, etc | |
