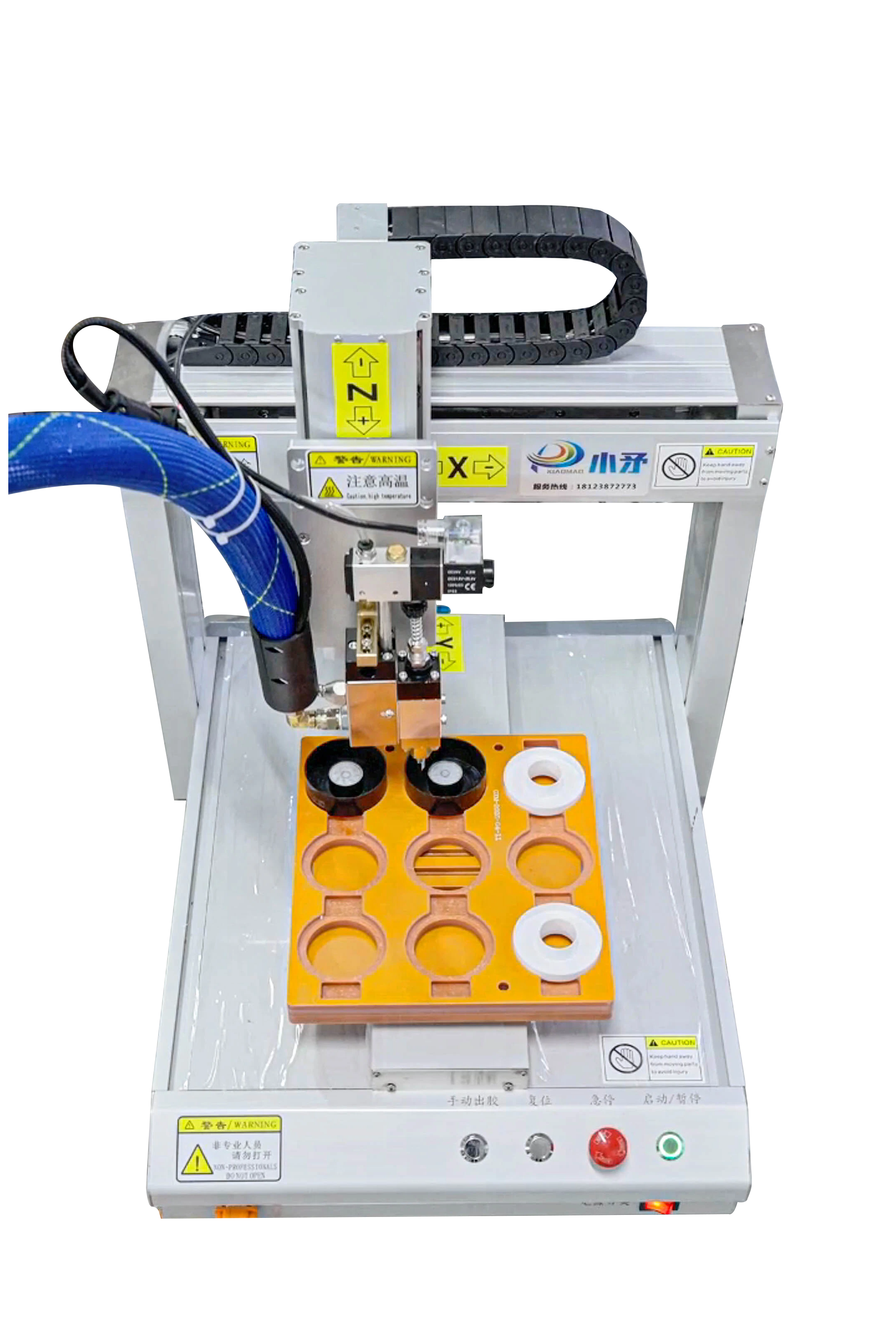

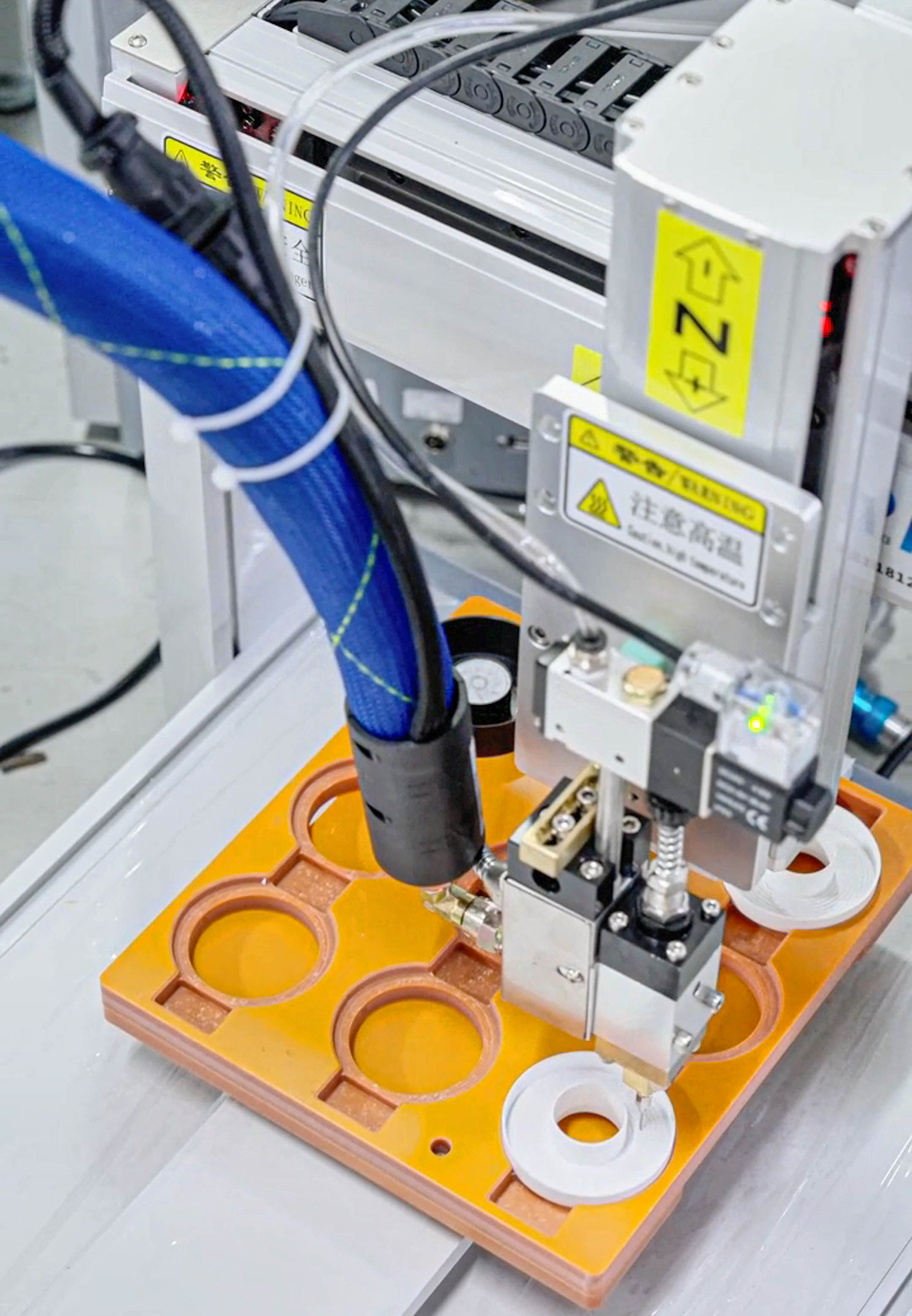

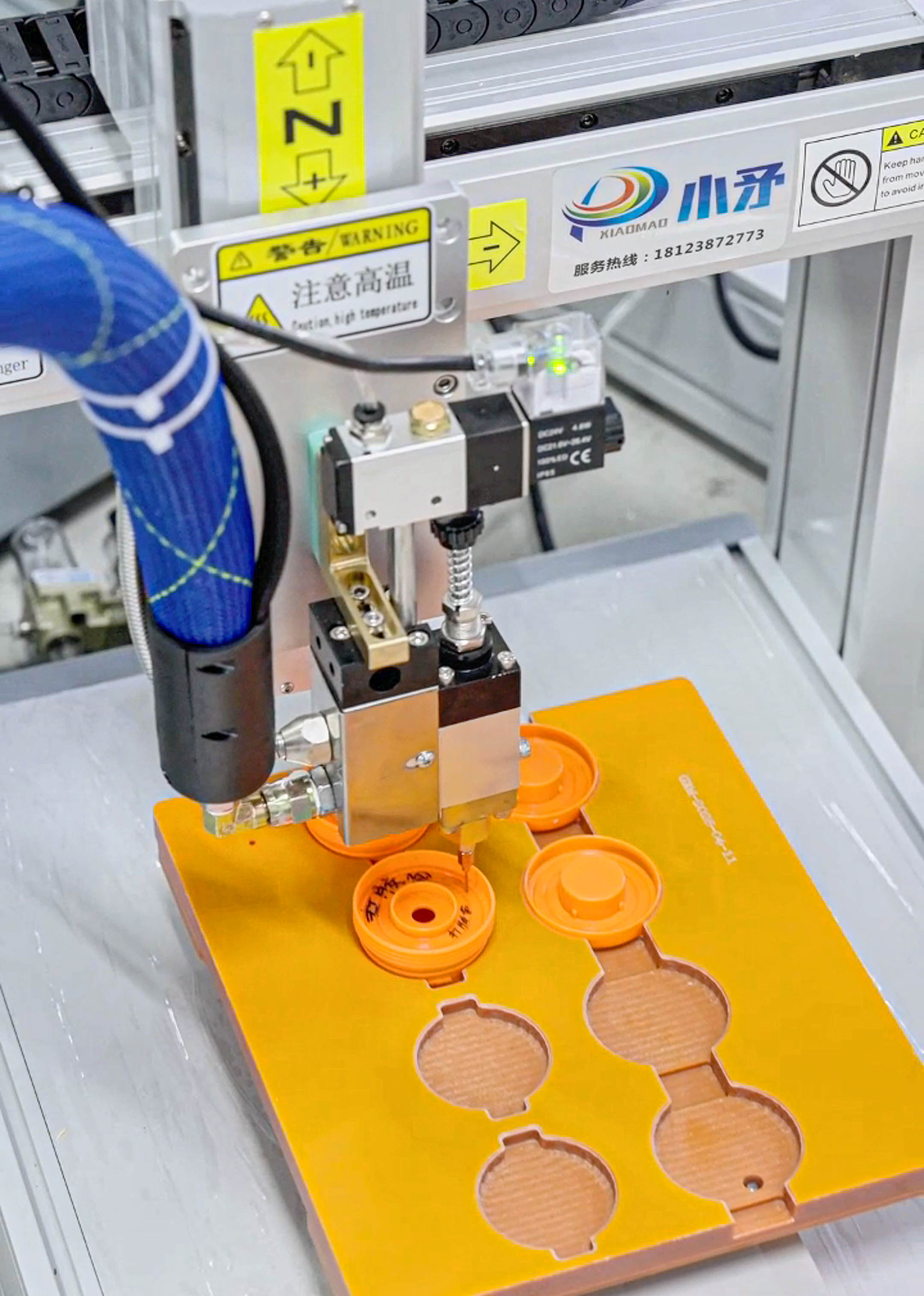

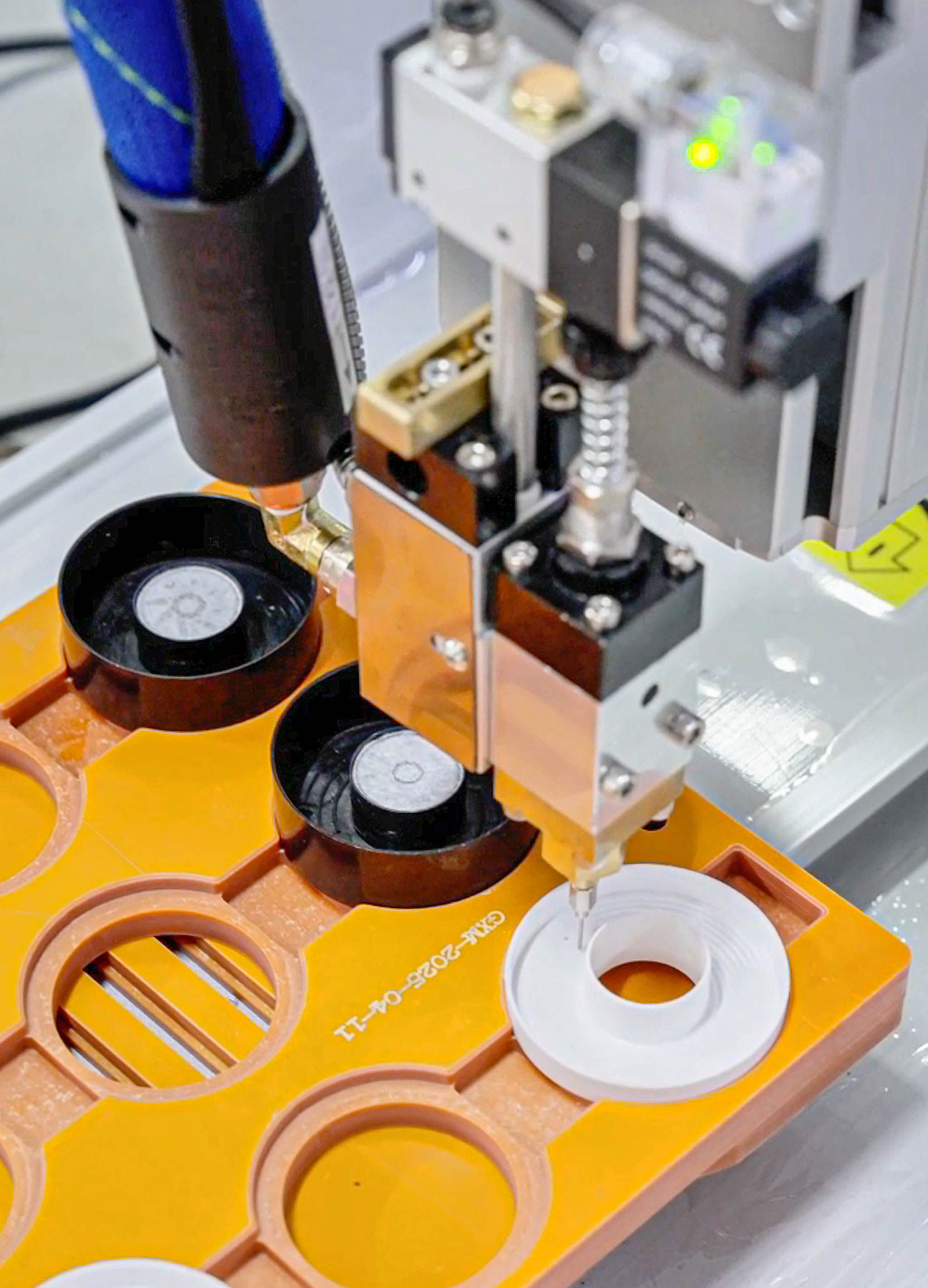

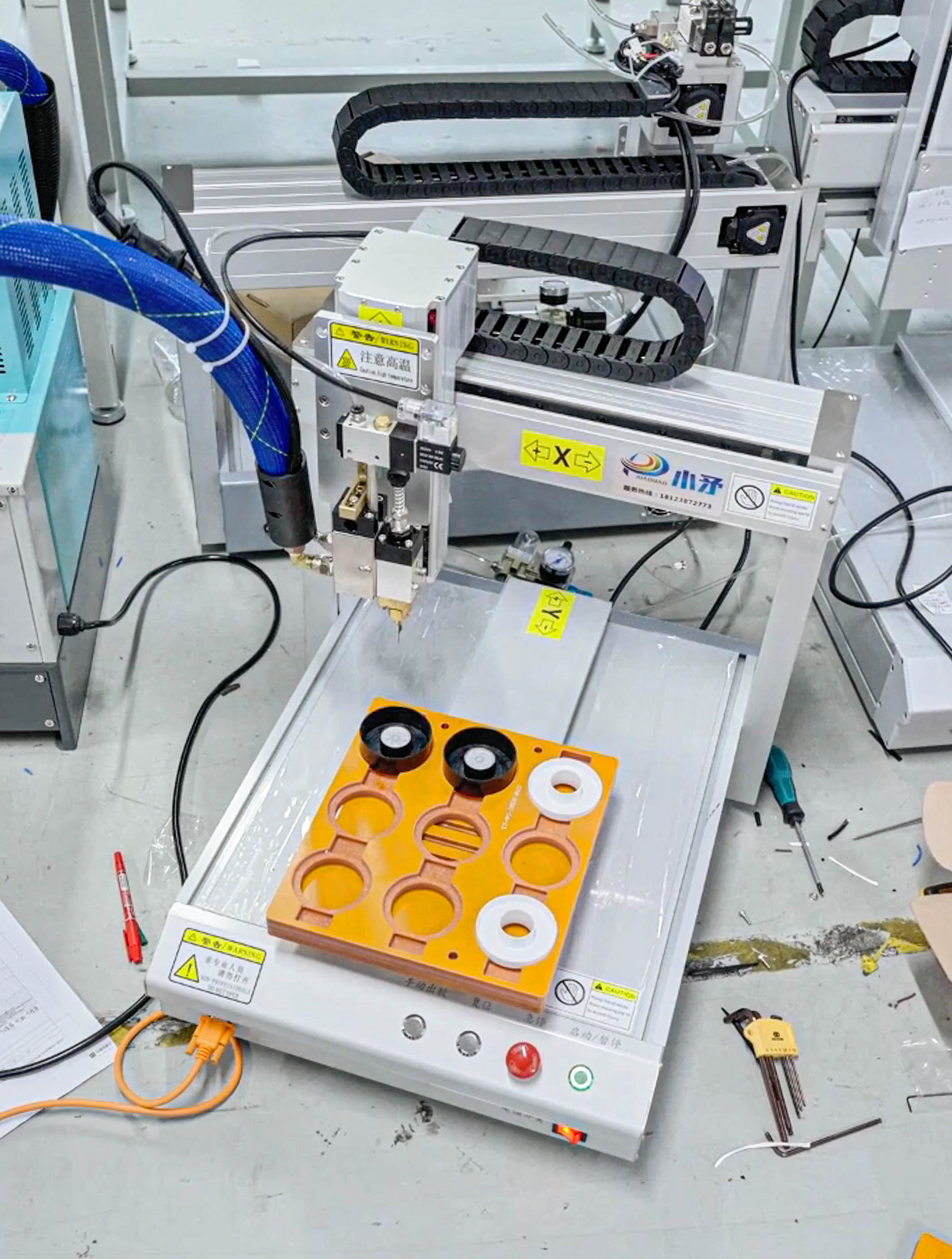

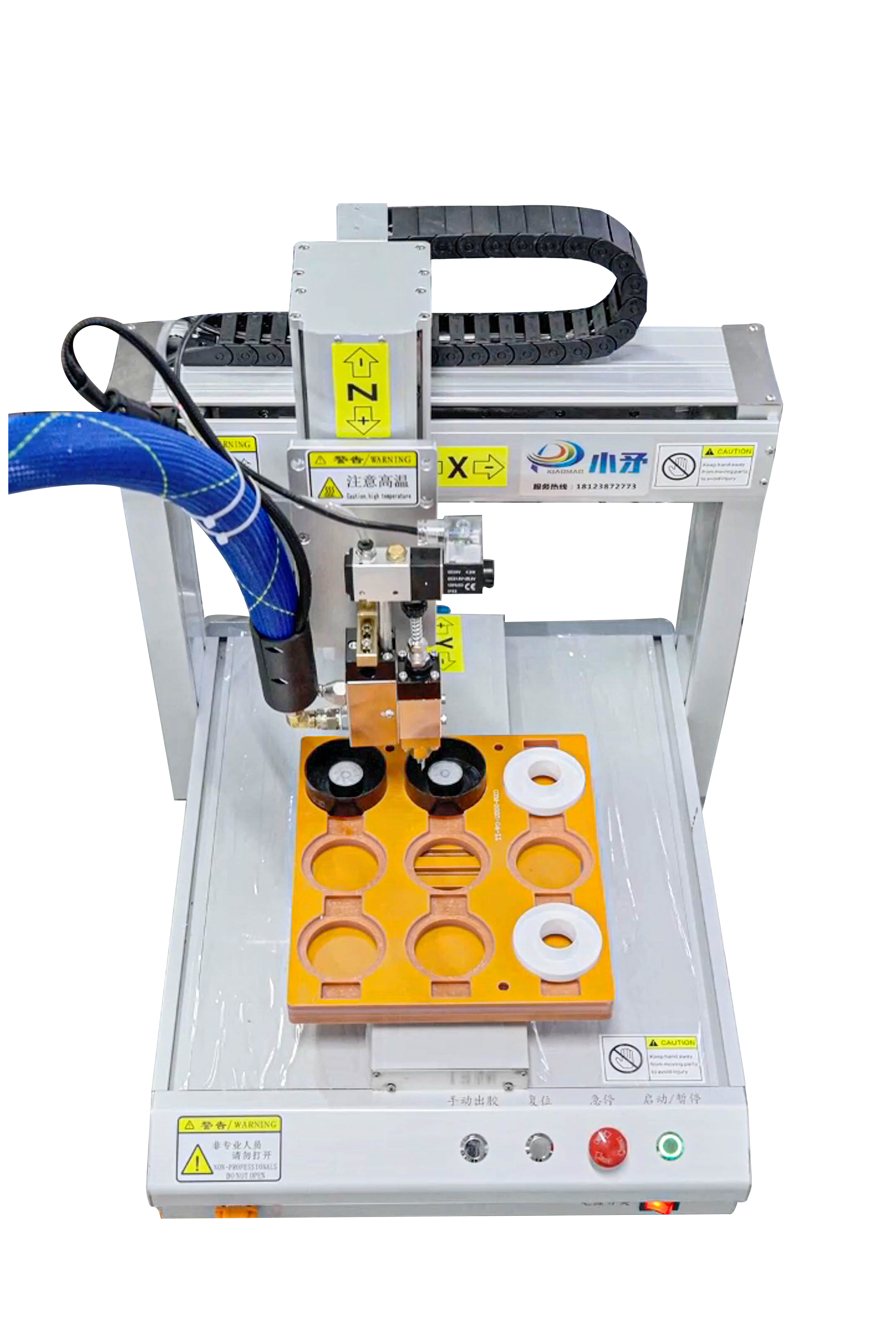

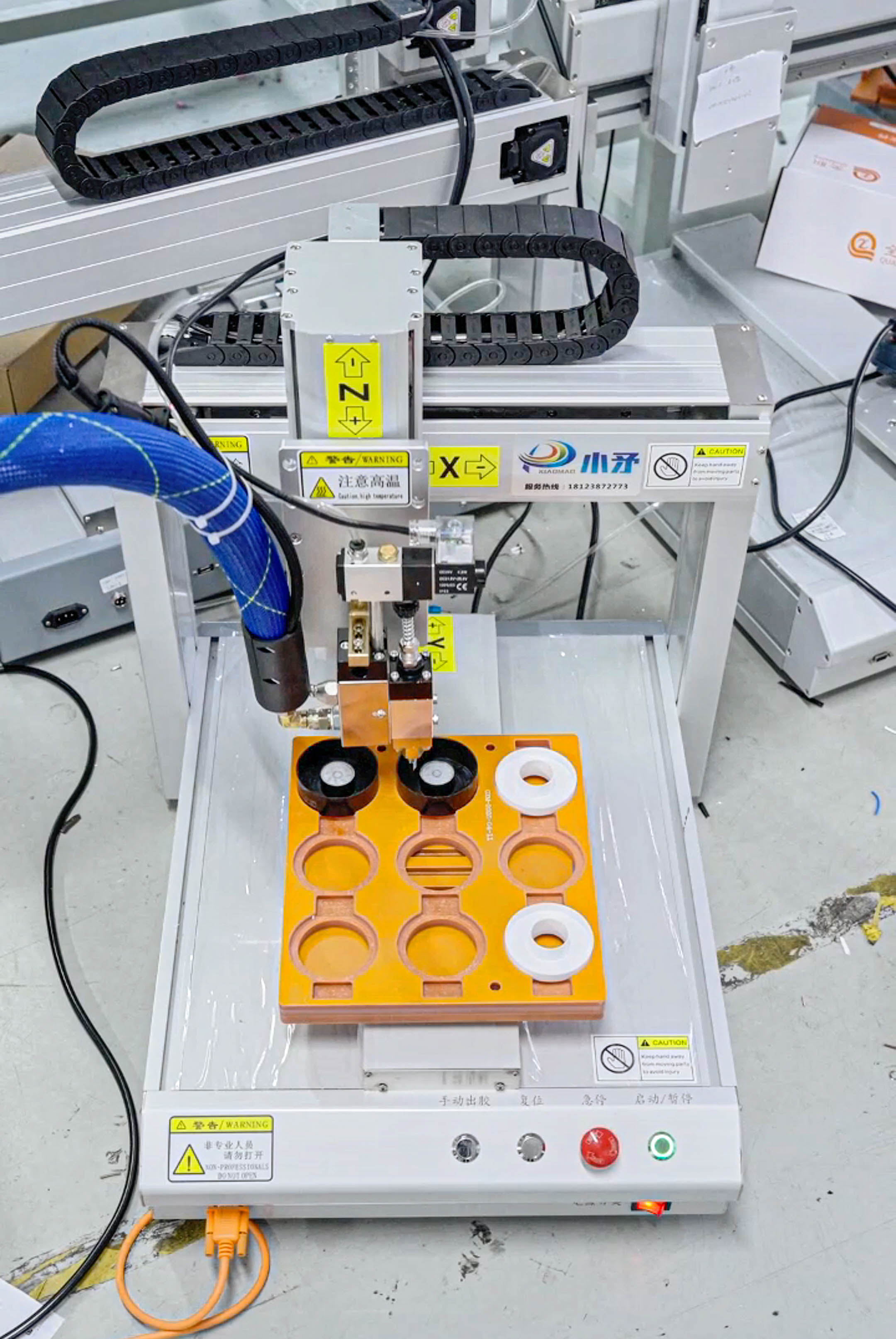

Single-station hot melt glue dispensing machine for drawing circles on plastics
Its dispensing accuracy can reach ±0.02mm, and the circles are uniform and consistent, which greatly improves product quality; the dispensing speed is 30% higher than that of traditional equipment, greatly shortening the production cycle; the hot melt glue dries immediately after application, without the need for additional drying time, saving space and time costs.
There are many industries that are suitable for products. The electronic and electrical industry is used for the firm bonding of plastic shells and circuit boards; the precise assembly of plastic parts in toy manufacturing; and the reliable sealing and connection of plastic interior parts in the production of automotive parts. It is an ideal choice for various industries to improve production efficiency and product quality.
2.24-hour global one-to-one efficient service.
3.Strong manufacturing, professional customization, quality assurance.
4.Have ISO, TUV and other international quality certifications.
5.Fast delivery, professional transportation.
6.On-site installation, simple and efficient.
Service:
Design and customize models, various styles, strong structure, support teaching, convenient transportation
Origin:
Shenzhen, Guangdong, China
Brand name:
Xiaomao Automation
More Choices
Model | Hot Melt Glue Dispensing Machine | |
Working range X/Y/Z (mm) | 300*300*100/500*300*300*100 ,Customizable stroke | |
Programming method | Teaching programming or graphic import | |
Moving graphic trajectory | Point, straight line, arc, full circle, curve, polyline, spiral, ellipse | |
Dispensing needle | Plastic steel needle, TT needle | |
Dispensing cylinder | 30ml/50ml/300ml/5KG | |
Minimum discharge volume (mm) | 0.01 | |
Dispensing frequency (times/second) | 5 | |
Load (kg)
| X/Y axis | 10 |
Z axis | 5 | |
Weight (kg) | 48 | |
Motion system | Nihono stepper motor, driver | |
Operating system | LCD panel/handheld programmer | |
Repeat positioning accuracy (mm) | Screw drive | ±0.01-0.02 |
Synchronous belt | ±0.02-0.04 | |
Machine size (MM) | 540*580*650 | |
Program storage capacity | 999 parameter files (65,535 points per file) | |
Transmission method | Upper silver rail (slider) | |
Maximum speed (mm/s) | 300 | |
Marketing type | Ordinary product | |
Showroom location | Germany | |
Health condition | New | |
Warranty | 1 year | |
Core component warranty | 1 year | |
Mechanical test report | Provided | |
Video shipment inspection | Provided | |
Origin | Guangdong, China | |
Core components | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump | |
Applicable glue | PUR hot melt adhesive, PUH hot melt adhesive, hot melt adhesive granules, hot melt adhesive sticks, hot melt adhesive blocks, hot melt adhesive powder | |
Applicable products
| Woodworking, gift boxes, boutique boxes, toys, leather, leather goods, electronics, electrical appliances, carton edge banding, label reinforcement, interior bonding, filter sealing, circuit board packaging, wiring harness fixing, furniture splicing, mattress bonding, non-woven fabric lamination, shoe assembly, dressing production, equipment packaging, photovoltaic module packaging, lithium battery tab bonding, insulation board bonding, door and window sealing, book binding, packaging box molding, etc. | |
Applicable industries | Packaging, automobile manufacturing, electronics and electrical appliances, household goods, textiles and clothing, medical treatment, toys, new energy, construction materials, printing, etc. | |
